Description

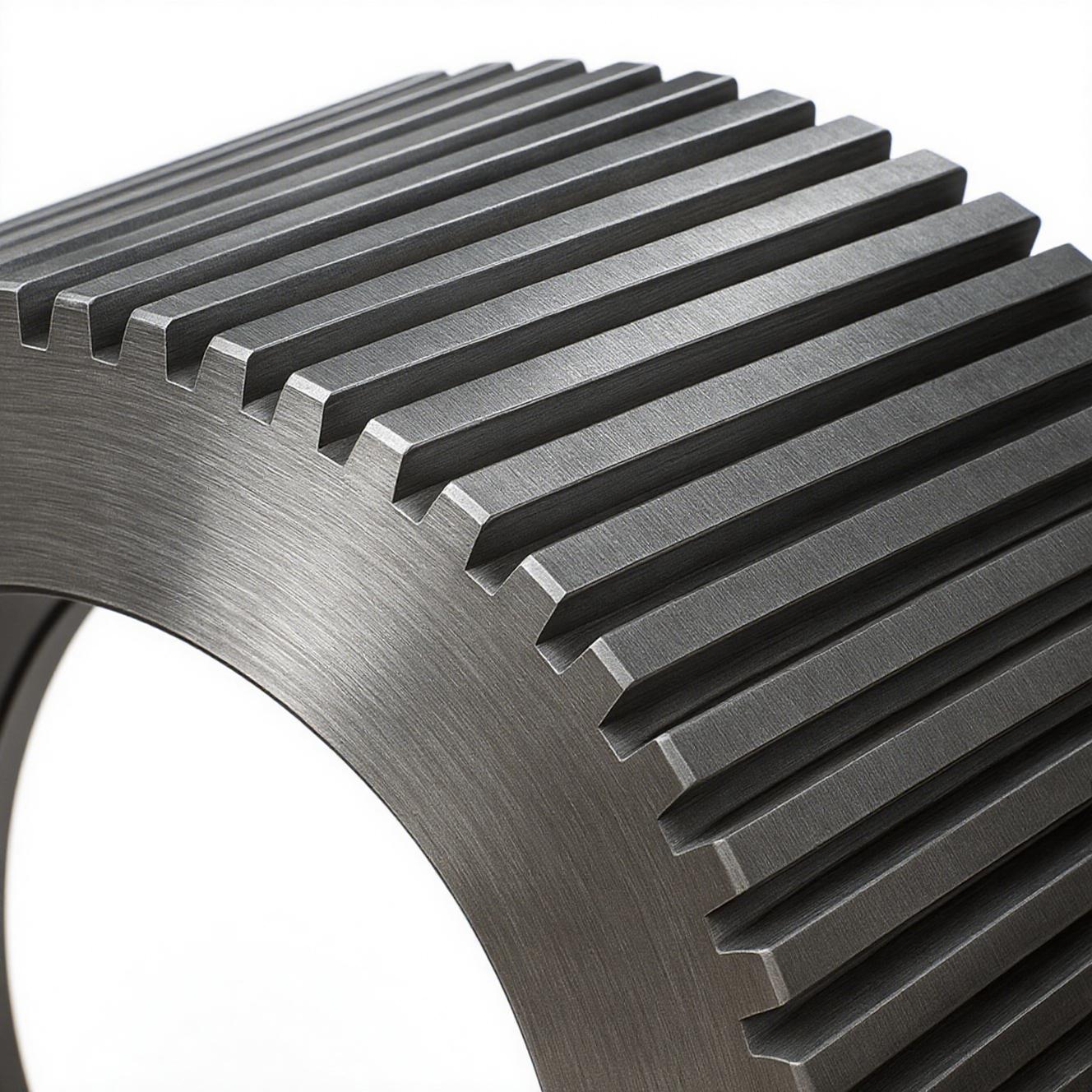

Among various groove designs for pellet mill rollers, the Trapezoidal slot roller shell occupies an important position in the production of feed pellets, biomass pellets, and organic fertilizer pellets due to its unique groove geometry. A Trapezoidal slot roller shell refers to a roller whose working surface is machined with axial grooves having a trapezoidal cross-section, where the groove opening width is greater than the groove bottom width, and both side walls feature a certain slope, forming a stable structure that is wider at the top and narrower at the bottom.

Compared with traditional rectangular or V-shaped groove rollers, the Trapezoidal Slot Roller Shell offers the following core advantages:

First, smooth discharge and reduced material sticking. The top-wide, bottom-narrow structure of the trapezoidal groove allows material to easily detach from the groove opening after pressing, reducing material retention and accumulation within the groove. This significantly lowers the risk of clogging and mill jamming, making it particularly suitable for raw materials with higher moisture content or greater viscosity.

Second, excellent wear resistance and long service life. The sloped sidewall structure of the trapezoidal groove increases the contact area between the roller and the material, dispersing compressive stress and reducing localized excessive wear. At the same time, the wider groove bottom provides better wear layer thickness, extending the overall roller life by 20%–30% compared with V-shaped grooves.

Third, good pellet forming quality and uniform density. The trapezoidal groove applies pressure to the material more evenly, avoiding the stress concentration and uneven shearing that may occur at sharp corners. The finished pellets have smooth surfaces, fewer cracks, consistent density, and high quality stability.

In terms of material and process, high-quality Trapezoidal slot roller shells are manufactured from high-alloy steel or carburized bearing steel (e.g., 20CrMnTi, GCr15) through forging, carburizing, overall quenching, and low-temperature tempering. The working layer hardness is consistently maintained at HRC58-62. Trapezoidal grooves can be precision-machined using form tools to ensure accurate groove angles and consistent dimensions.

Regarding compatibility, Trapezoidal slot roller shells can be customized with inner hole diameter, keyway, roller width, and trapezoidal groove parameters (top width, bottom width, depth, sidewall slope, etc.). They are compatible with both ring-die and flat-die pellet mills and fit major brands such as CPM, Buhler, Zhengchang, and Muyang.

In summary, with its comprehensive advantages of smooth discharge, excellent wear resistance, and uniform forming, the Trapezoidal Slot Roller Shell is a reliable and widely used choice in the pellet mill accessory market.
