In the selection and optimization of pellet mill accessories, the groove structure of the roller is one of the key factors determining pelleting efficiency and final product quality. The Through oblique slot roller shell, as an innovative design that combines the advantages of both straight-through and inclined grooves, is demonstrating unique value in the pelleting of high-fiber and medium-fiber materials.

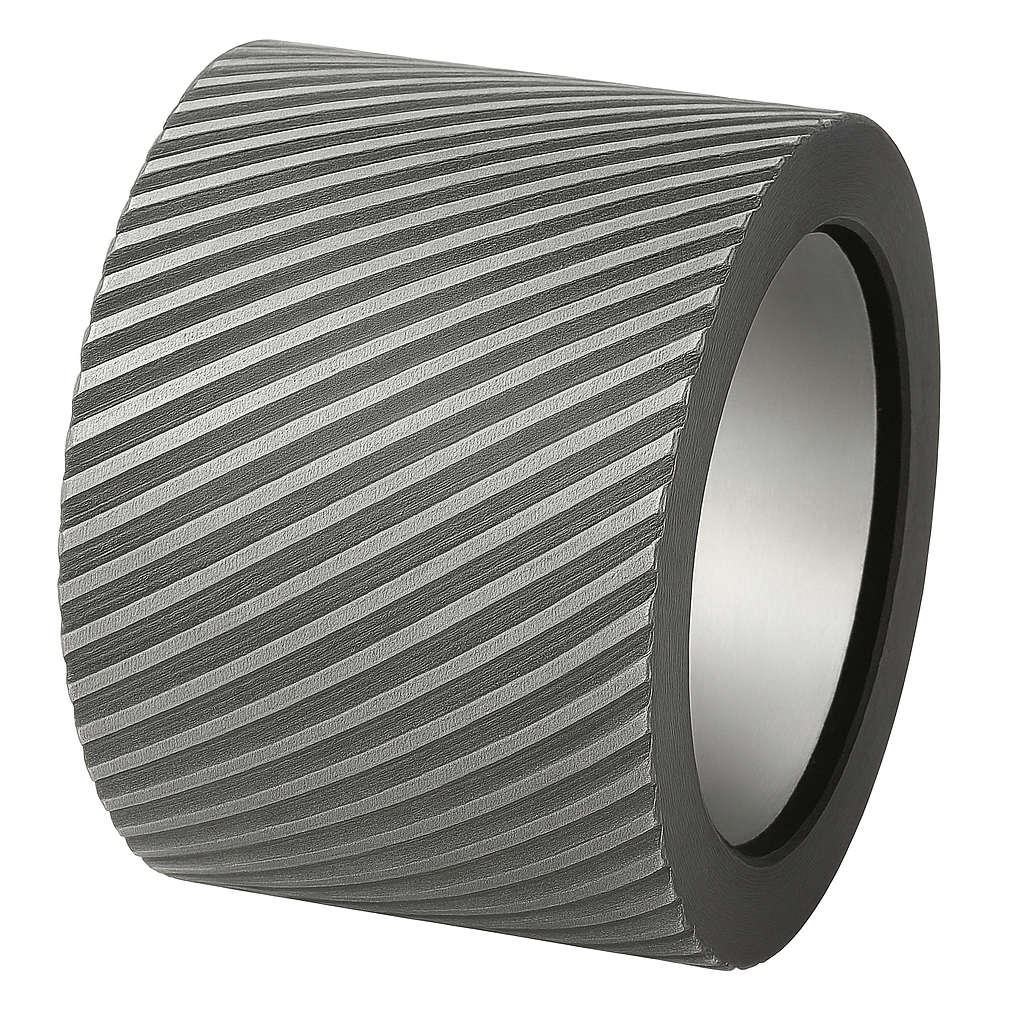

A Through oblique slot roller shell refers to a roller whose axial grooves adopt a continuous oblique design, with grooves extending from one end of the roller surface to the other at a certain angle (typically 5°–15°) in a spiral or inclined manner, without interruptions or closed dead corners. Material can move smoothly along the oblique path within the grooves. Compared with straight-through groove rollers, the through oblique slot structure offers the following core advantages:

First, stronger material intake capability. Due to the certain inclination angle of the grooves, the through oblique slot roller generates additional axial pushing force and transverse shearing action on the material during rotation. This design makes it easier for material to be drawn into the wedge zone between the roller and the die, making it particularly suitable for raw materials with poor flowability, longer fibers, or certain moisture content, such as straw, cotton stalks, forage grass, and waste wood.

Second, more uniform discharge and higher pellet density. During discharge, the through oblique slot applies continuous axial pushing force to the material, allowing it to be evenly distributed along the roller surface and continuously extruded, reducing localized accumulation or idle running. At the same time, the oblique structure extends the residence time of the material in the compression zone, increases the compression ratio, and results in finished pellets with smoother surfaces, higher density, and better durability.

Third, smooth discharge and excellent heat dissipation. Unlike closed inclined grooves, the through oblique slot is an axially continuous structure with no interruptions, so material does not stay in the grooves for extended periods, and the risk of clogging is much lower than that of traditional non-through inclined grooves. Additionally, the continuous structure increases the air contact area on the roller surface, facilitating rapid heat dissipation, reducing thermal fatigue damage, and extending roller service life, typically by 25%–40% compared with ordinary inclined groove rollers.

In terms of material and process, high-quality Through oblique slot roller shells are typically manufactured from high-alloy steel or carburized bearing steel (e.g., 20CrMnTi, GCr15) through forging, rough turning, carburizing, overall quenching, and low-temperature tempering. The working layer hardness is consistently maintained at HRC58-62, while the core retains good toughness, ensuring the roller does not easily crack or deform under high-intensity compression conditions. Some premium products also feature shot peening or wear-resistant cladding on the groove surface.

Regarding compatibility, Through oblique slot roller shells can be customized with inner hole diameter, keyway, roller width, groove depth, groove width, groove pitch, and inclination angle according to original mill specifications. They are compatible with both ring-die and flat-die pellet mills and fit major brands worldwide, including CPM, Buhler, Andritz, Zhengchang, and Muyang.

In summary, with its strong material intake capability, high-density forming performance, and advantages of smooth discharge and good heat dissipation, the Through oblique slot roller shell holds significant application value in the production of high-fiber biomass pellets and medium-fiber feed pellets.
