Pulse Dust Collector: A Complete Guide to Selection, Principle & Maintenance

1. Why Must Granulation Equipment Be Equipped with a Dust Collector?

In the pharmaceutical, food, and chemical industries, granulation is a core process that determines product quality. Mixing, extrusion, drying, sieving, and sizing all generate large amounts of dust. This dust not only pollutes the workshop environment but may also cause dust explosions and harm operators’ health.

Therefore, equipping granulation equipment with an efficient dust collector is a basic requirement for compliant production, and a necessary condition for passing certifications such as GMP, ATEX, and CE. A suitable dust collection system ensures safe production while recovering valuable materials, directly reducing production costs.

2. Working Principle of Granulator Dust Collectors

Granulator dust collectors typically use bag filtration or cartridge filtration technology. The workflow is as follows:

1. Dust-laden gas collection: Dust is captured from granulators, fluid beds, and sizing machines through ducts.

2. Filtration and separation: Dust is intercepted by filter bags or cartridges, and clean gas is discharged by fans.

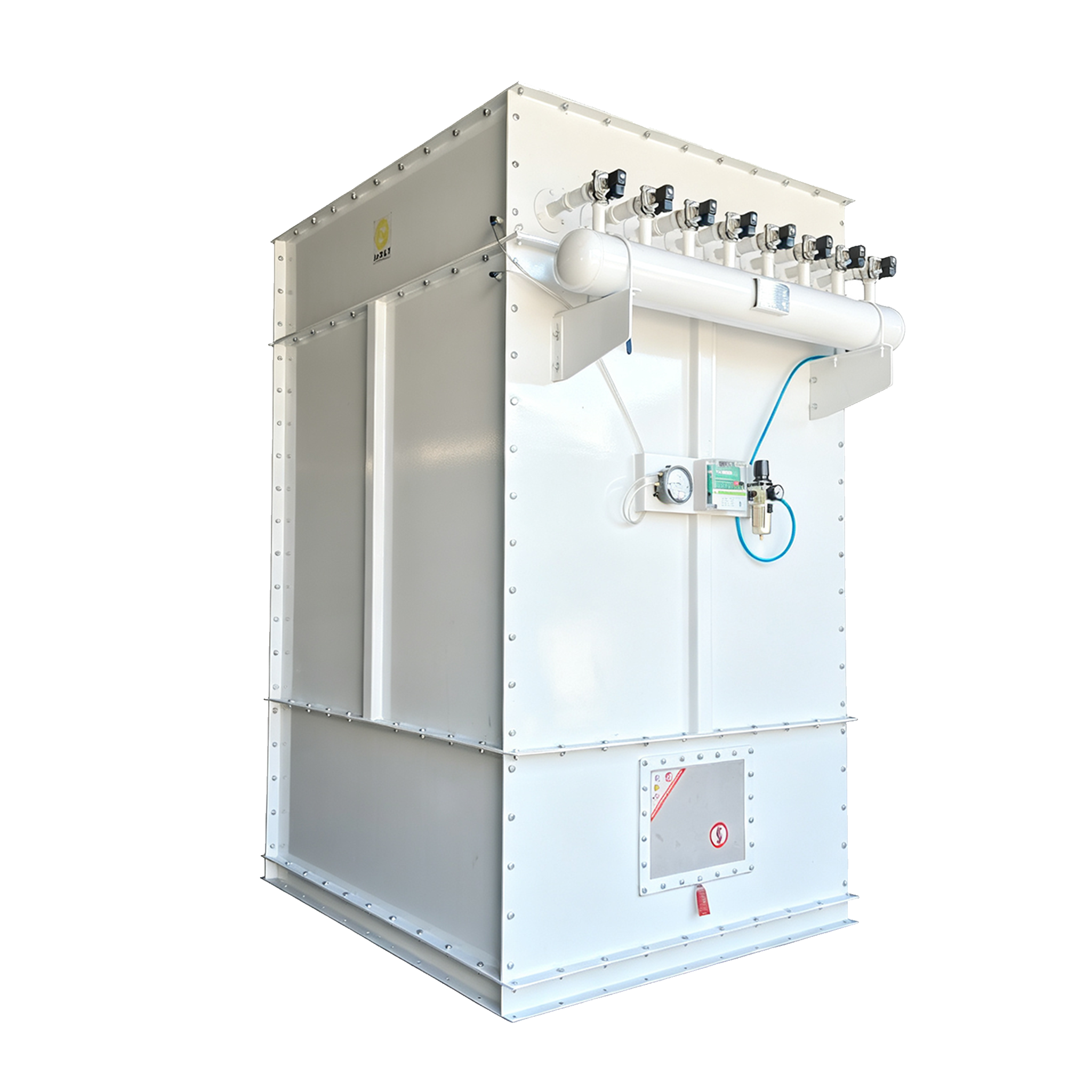

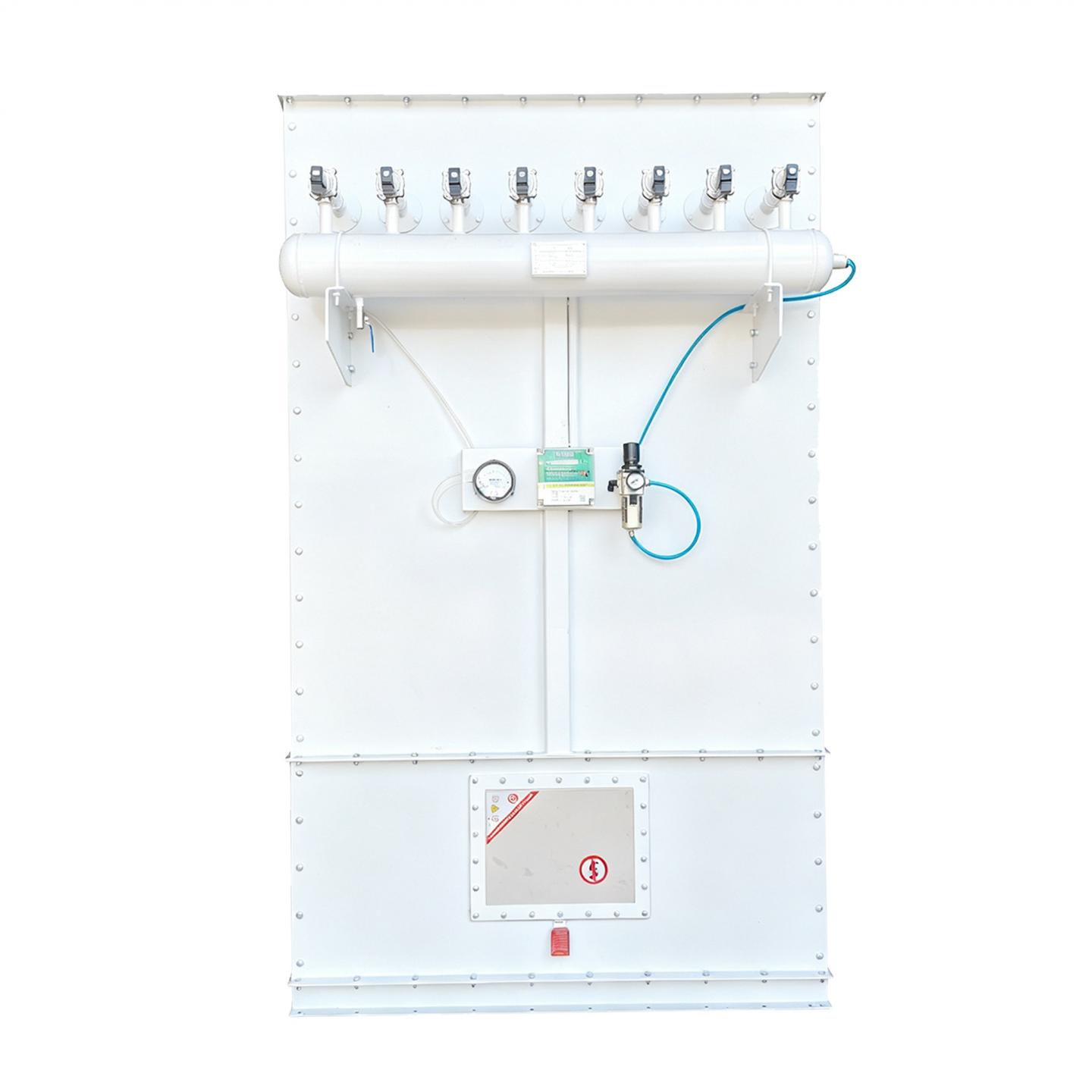

3. Cleaning and regeneration: The pulse jet system cleans periodically, and dust falls into the collection hopper.

4. Dust recovery: Recoverable materials are returned to production, reducing losses.

For flammable and explosive dust, explosion vent panels, spark detectors, and anti-static filter media are also required.

3. Common Types and Selection Points

Key selection parameters:

• Air volume: Calculated based on the number of dust sources and duct length;

• Filtration area: Determines efficiency and pressure differential;

• Dust characteristics: Particle size, humidity, stickiness, explosiveness;

• Explosion-proof rating: ATEX Zone 20/21/22 corresponds to different protection requirements;

• Material requirements: 316L stainless steel for pharmaceuticals, carbon steel for general applications.

4. Daily Maintenance and Common Issues

• Filter bags/cartridges: Check regularly for damage; replace when pressure differential exceeds 1500Pa;

• Pulse valves: Failure causes poor cleaning; test monthly;

• Pressure differential monitoring: High readings indicate clogged filters; check the cleaning system;

• Explosion-proof devices: Inspect vent panels and grounding resistance annually;

• Maintenance logs: Record pressure differential, air volume, and replacement cycles.

Common faults include: insufficient suction (duct leakage), dust overflow (damaged filters), and frequent cleaning (moist compressed air).

5.Main Technical Parameters

6. Industry Trends and Summary

As GMP and environmental requirements become stricter, granulator dust collectors are developing toward explosion-proof, modular, and intelligent designs. Smart pressure monitoring, automatic cleaning control, and remote maintenance have become standard features on high-end equipment.

Granulator dust collectors are not just environmental equipment but a key link in ensuring production safety and product quality. Proper selection and standardized maintenance achieve both efficient dust removal and material recovery. Companies are advised to conduct a working condition assessment before procurement, choose qualified suppliers, and establish a comprehensive maintenance system.
