Fan Silencer: A Complete Guide to Selection, Principle & Maintenance

1. What Is a Fan Silencer? Why Does Pellet Production Need It?

In the pharmaceutical, food, chemical, and feed industries, fans in pellet production lines are among the main noise sources. When centrifugal fans and Roots blowers operate at high speed, airflow pulsation and mechanical vibration generate noise levels of 85–110dB, seriously affecting workshop environments and operators’ health.

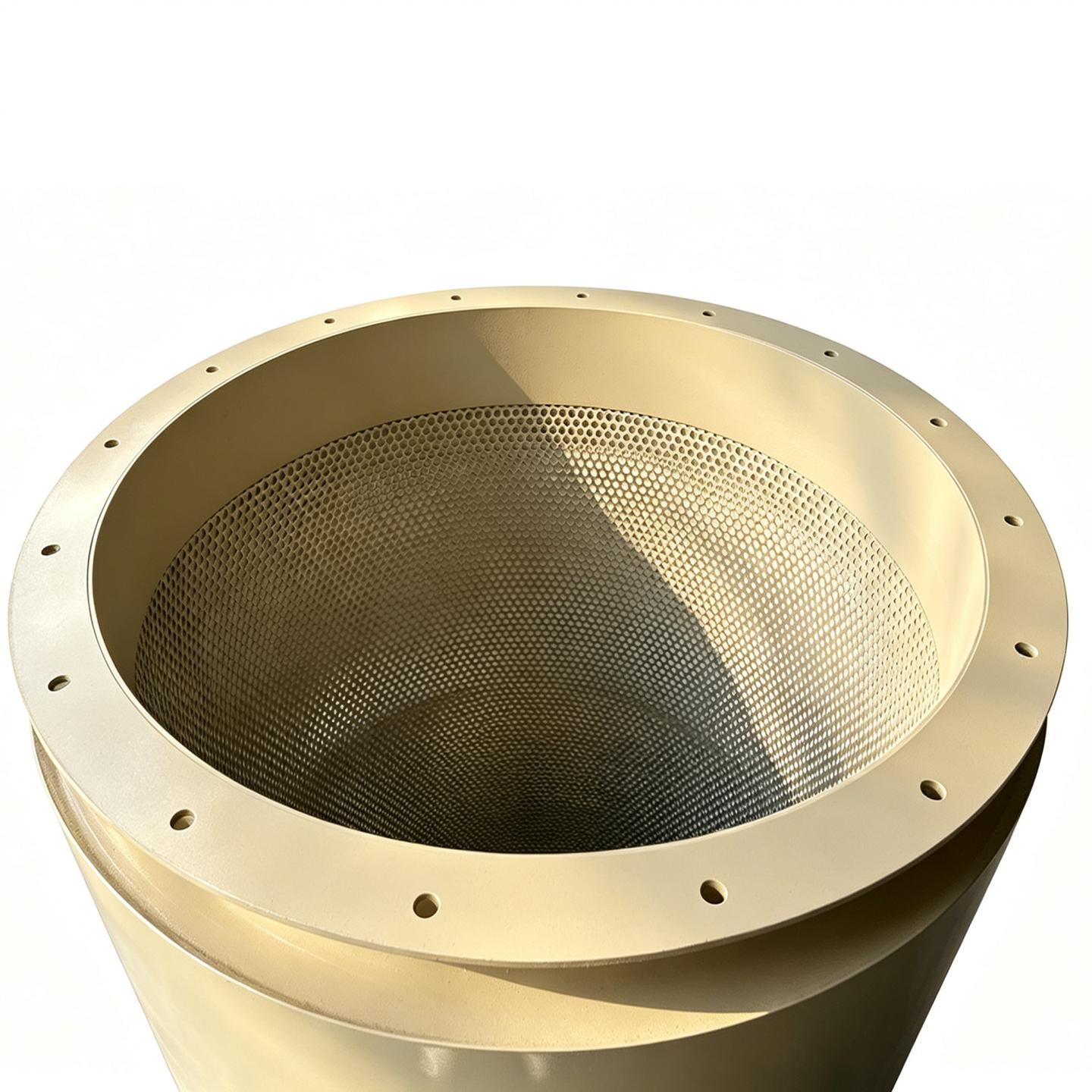

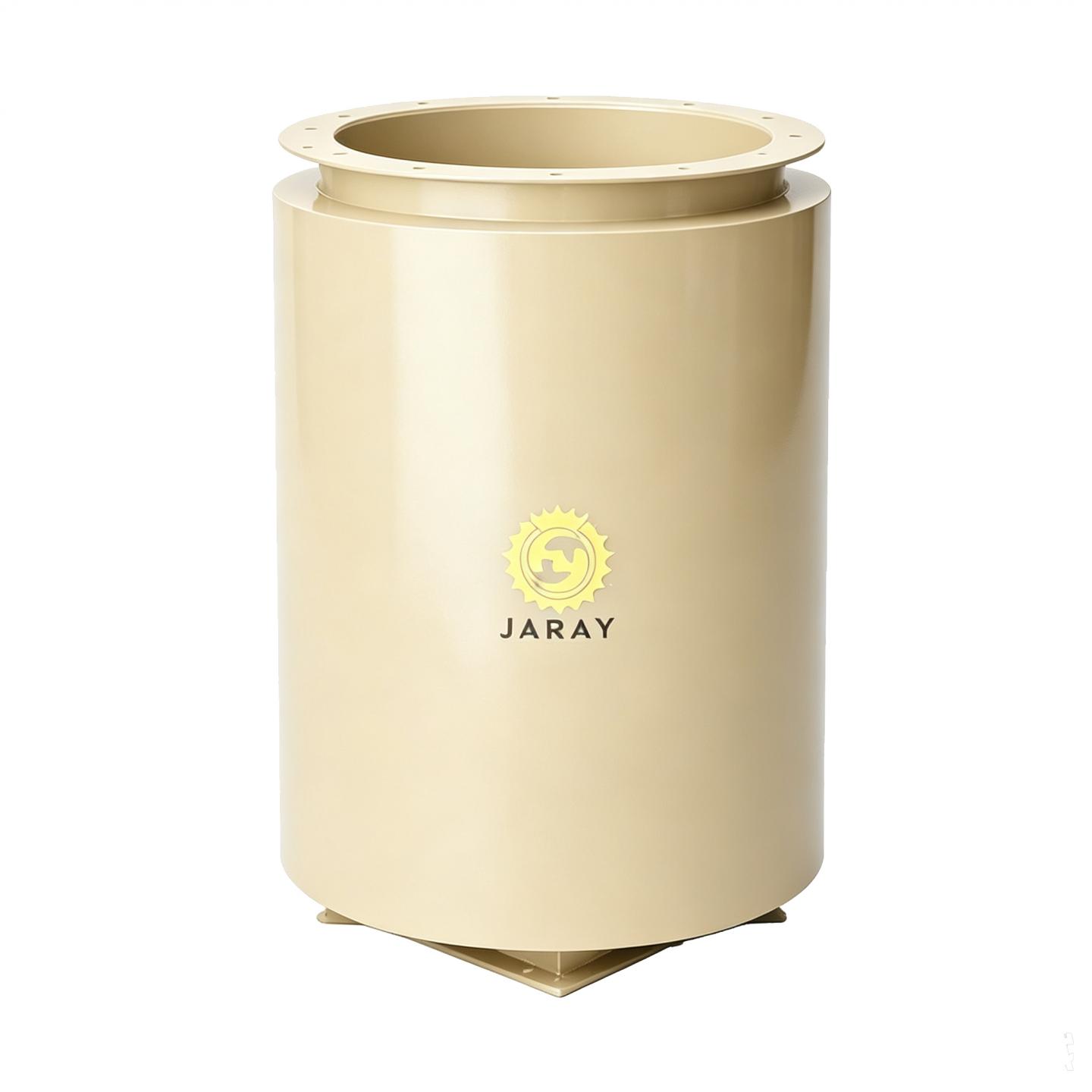

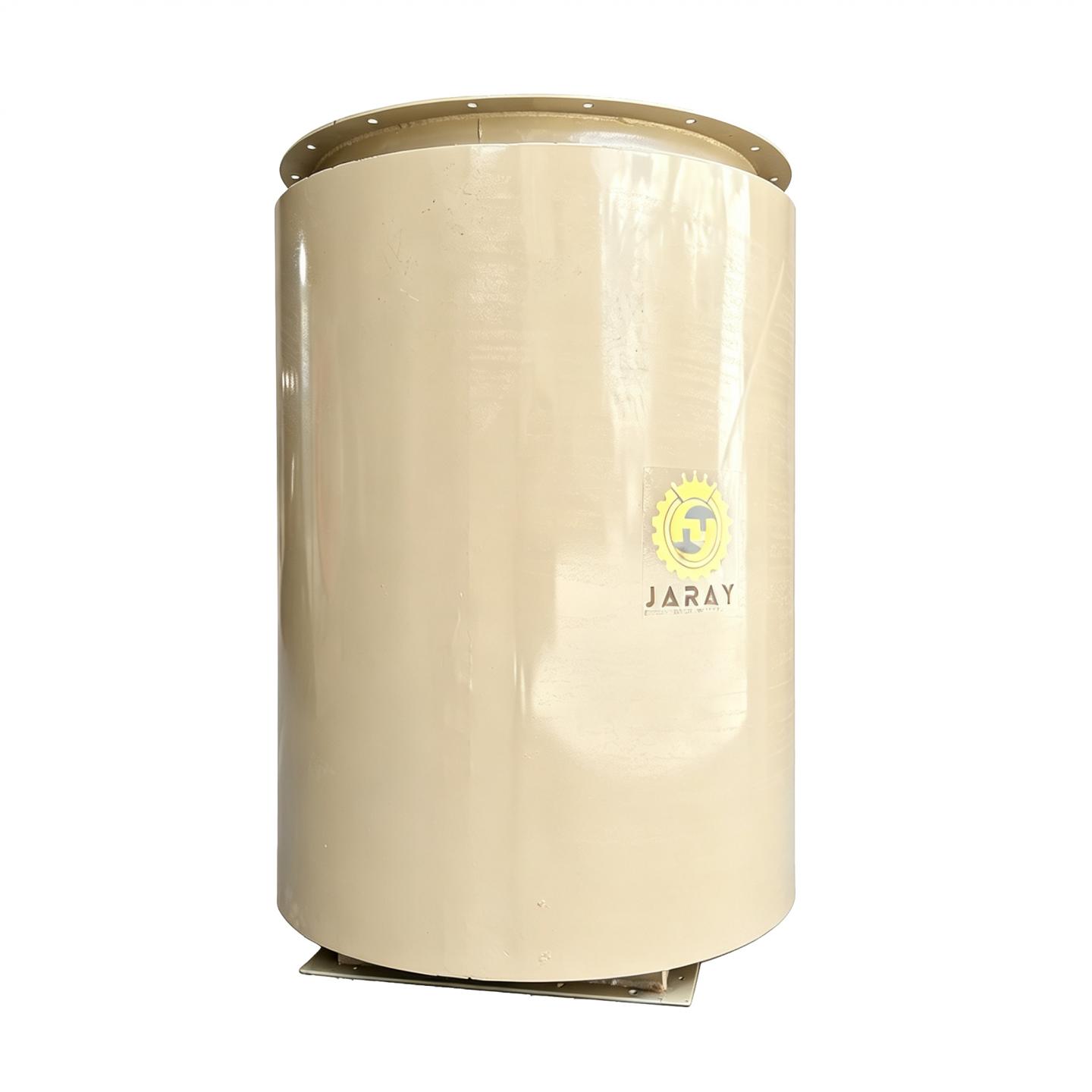

The Fan Silencer is a key noise reduction device installed at the fan inlet or outlet. Through sound absorption, insulation, and reactive silencing principles, it can reduce noise by 15–40dB, making it an important configuration for pellet workshops to meet occupational health and environmental standards.

2. Working Principle of Fan Silencers

Fan silencers are mainly divided into resistive silencers and reactive silencers. The workflow is as follows:

1. Sound waves enter: Noise generated by the fan enters the silencer with the airflow;

2. Sound absorption: Sound-absorbing materials (such as glass wool, rock wool) on the inner walls of resistive silencers absorb sound energy, converting it into heat;

3. Reactive silencing: Reactive silencers use expansion chambers and resonant cavities to change sound wave propagation paths, canceling specific frequency noise;

4. Clean airflow discharge: The silenced airflow discharges smoothly without affecting fan air volume.

For pharmaceutical clean areas, silencers also require stainless steel housings and fiber-free designs to avoid material contamination.

3. Main Types and Selection Points

Key selection parameters:

• Air volume and velocity: Silencer cross-section must match ducts to avoid added resistance;

• Noise reduction: Determined by workshop noise standards (typically ≤75dB);

• Material requirements: 316L stainless steel for pharmaceuticals, 304 for food;

• Explosion-proof rating: Explosion-proof type required for flammable/explosive dust;

• Cleaning design: Quick-release structure, no dead corners, easy cleaning and disinfection.

4. Daily Maintenance and Common Issues

• Sound-absorbing material inspection: Regularly check glass wool for detachment and moisture; replace promptly;

• Housing sealing: Check flanges and welds to prevent air leakage and noise escape;

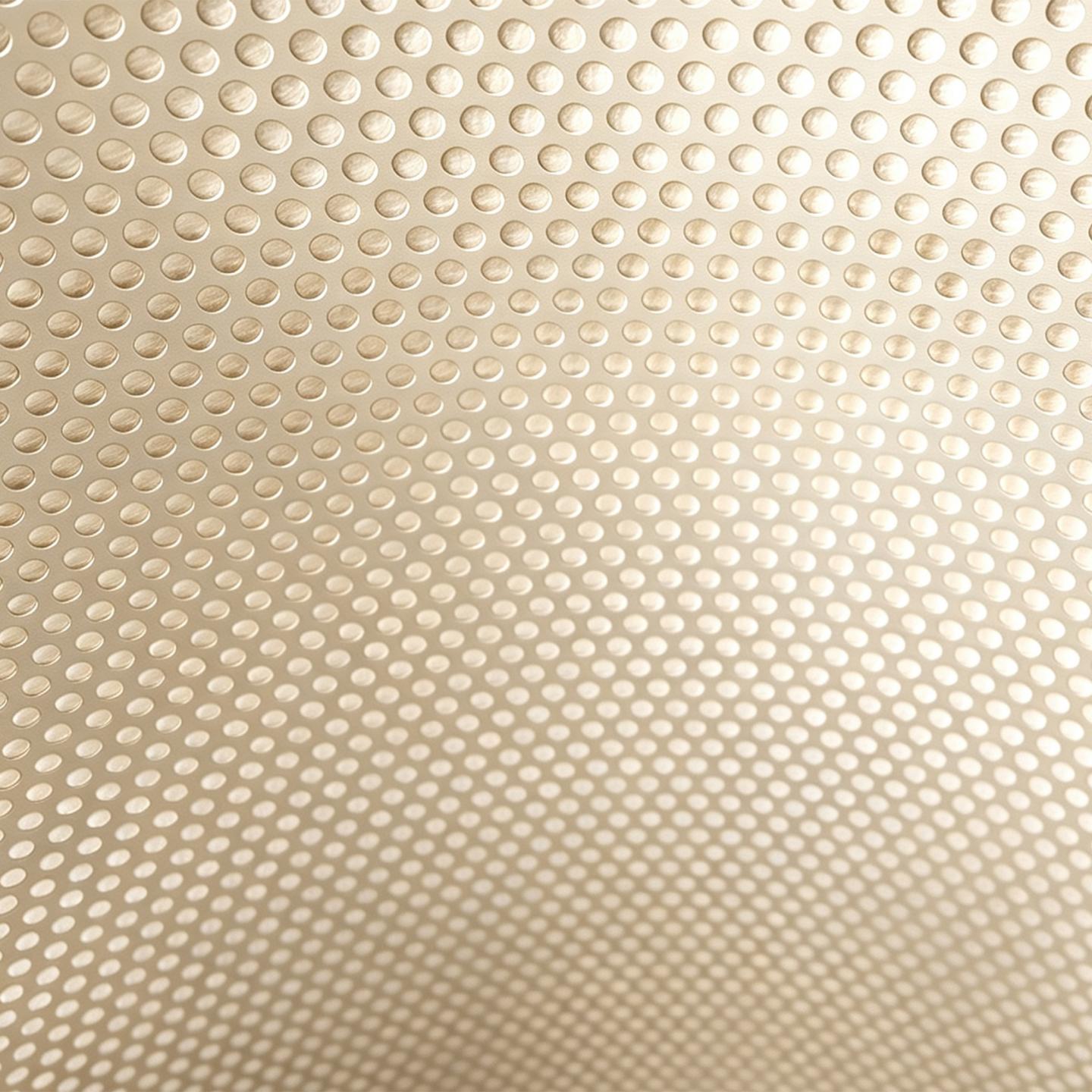

• Dust cleaning: Pharmaceutical dust easily clogs silencing holes; clean regularly;

• Mounting brackets: Check damping brackets and bolts to avoid vibration transmission;

• Operation records: Monitor noise levels and pressure differential; establish maintenance logs.

Common faults include: reduced noise reduction (aged sound-absorbing materials), reduced air volume (clogged silencing holes), abnormal noise (loose internal structures), and air leakage (seal failure).

5. Industry Trends and Summary

As GMP and environmental requirements increase, pellet equipment fan silencers are developing toward high-efficiency broadband, clean and dust-free, modular, and intelligent designs. Impedance composite structures and online monitoring have become standard features on high-end equipment.

Although a small component, the fan silencer is a key link for pellet workshops to meet noise standards and protect employee health. Proper selection and standardized maintenance achieve both noise reduction and ventilation. Companies are advised to choose professional manufacturers based on fan parameters and workshop noise standards, and establish regular maintenance systems.
