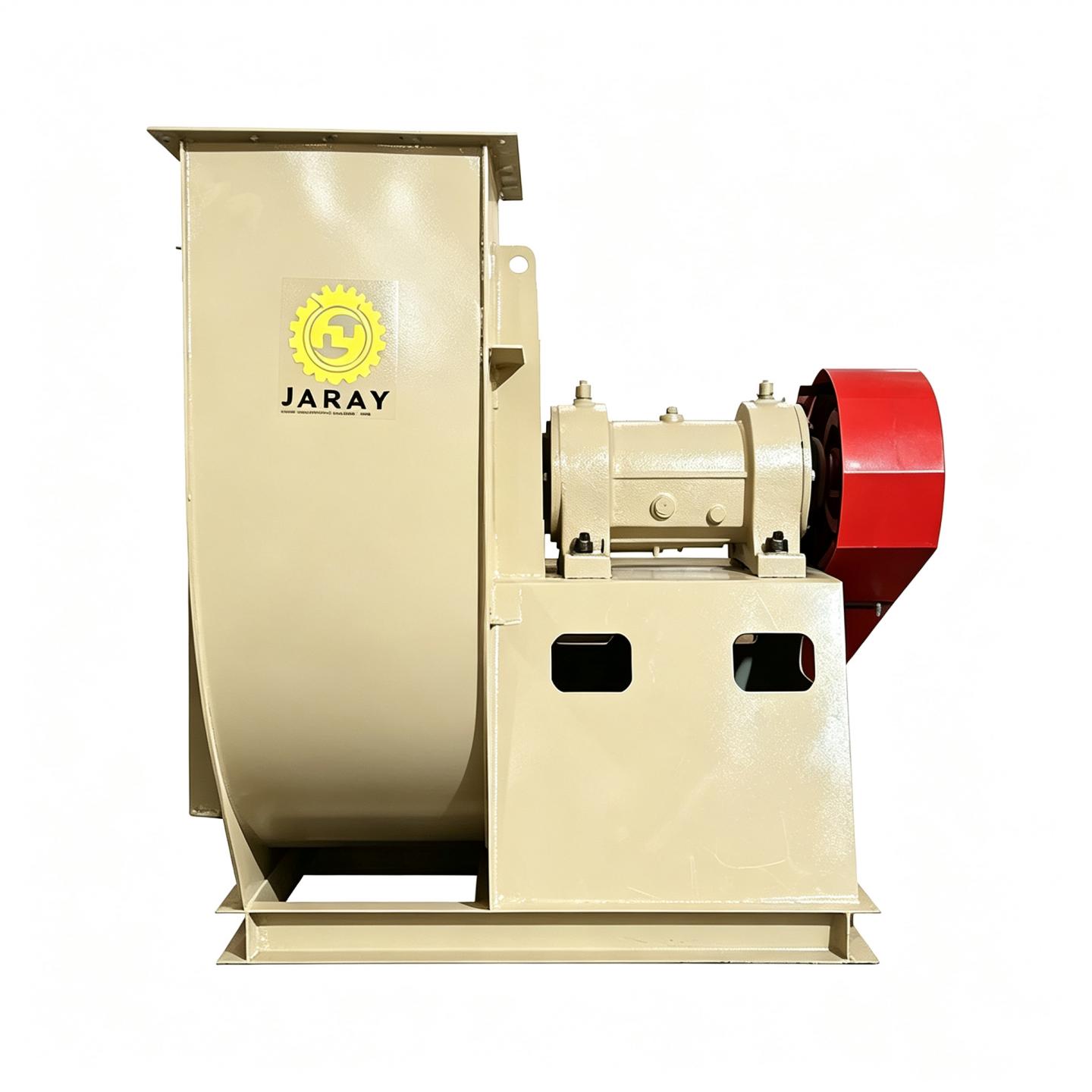

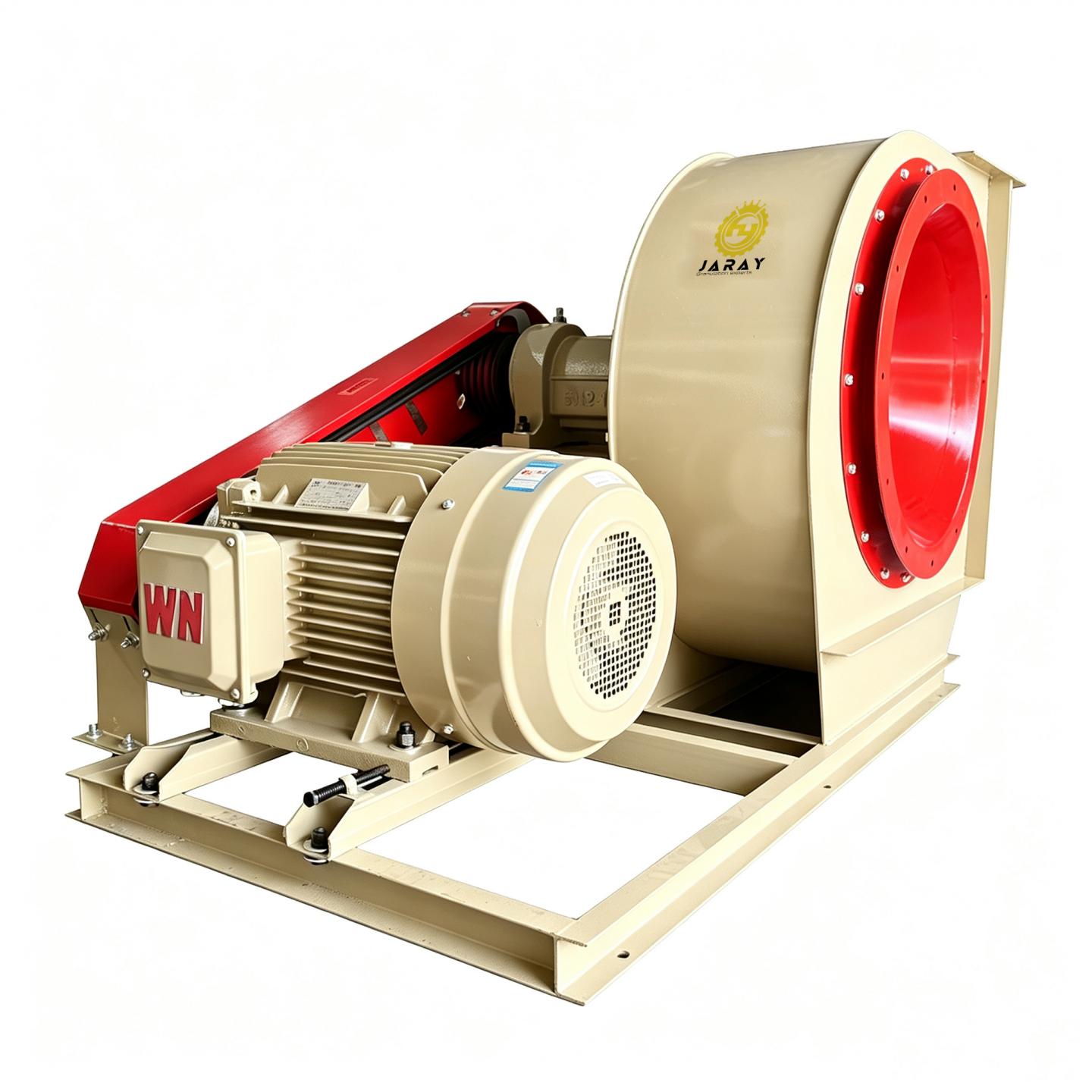

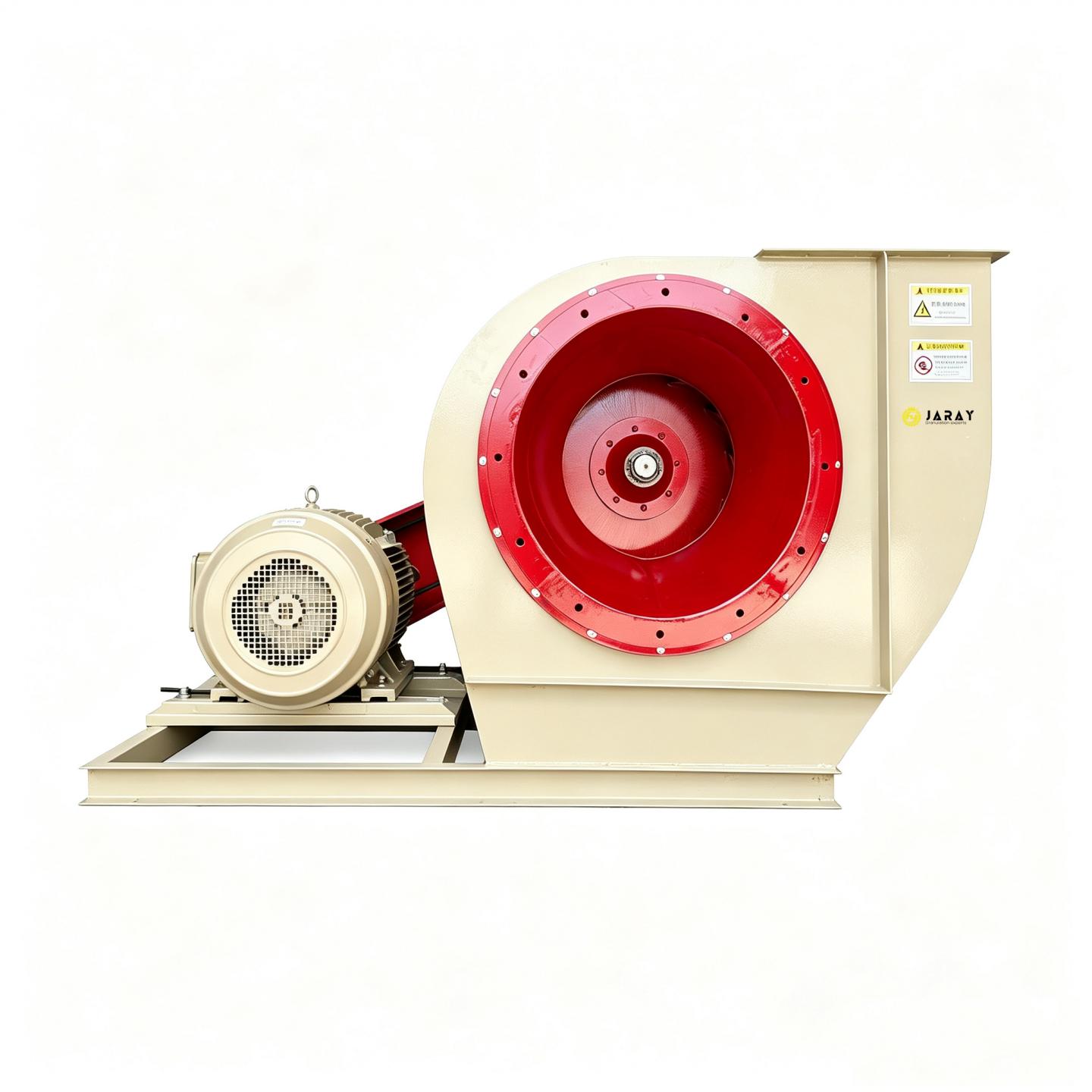

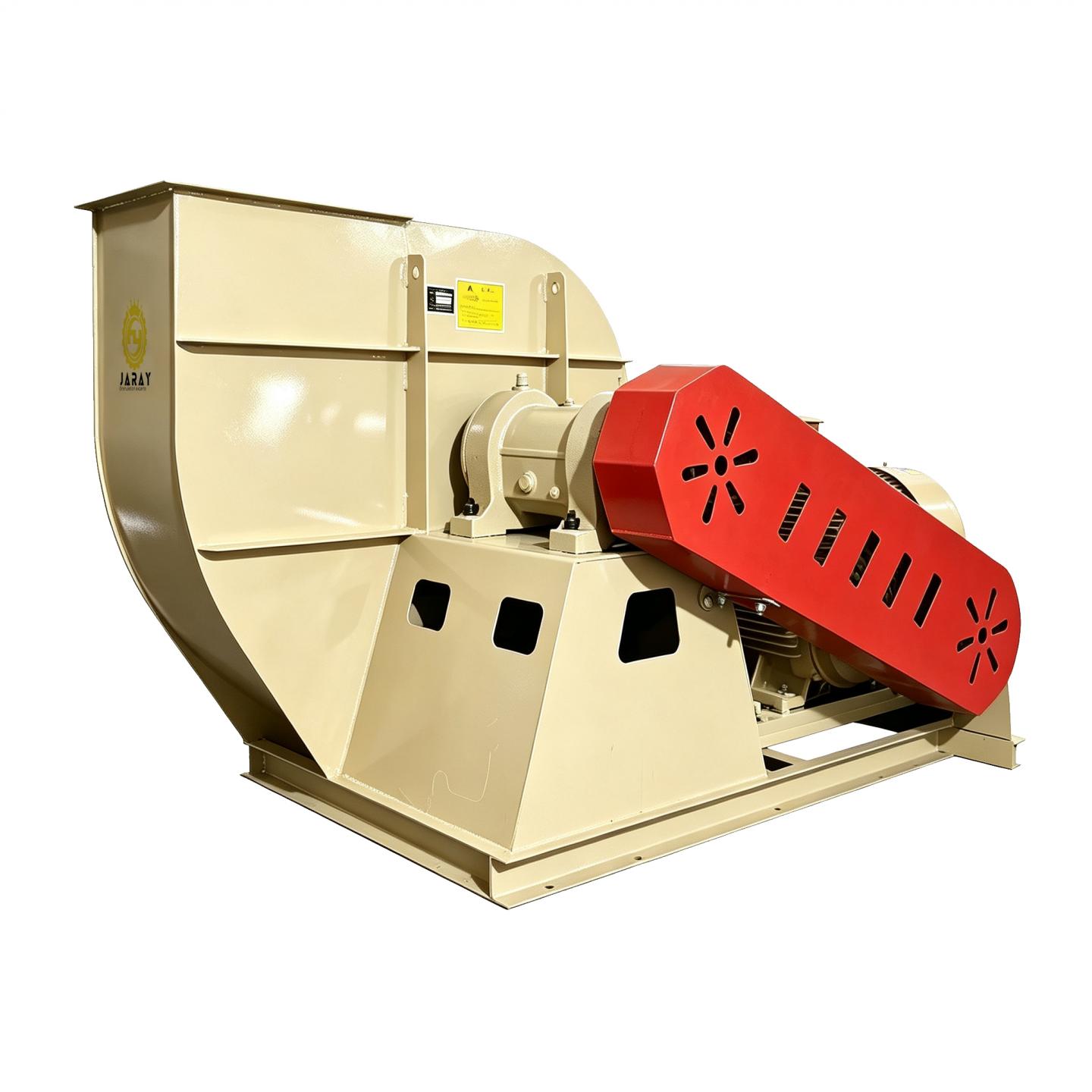

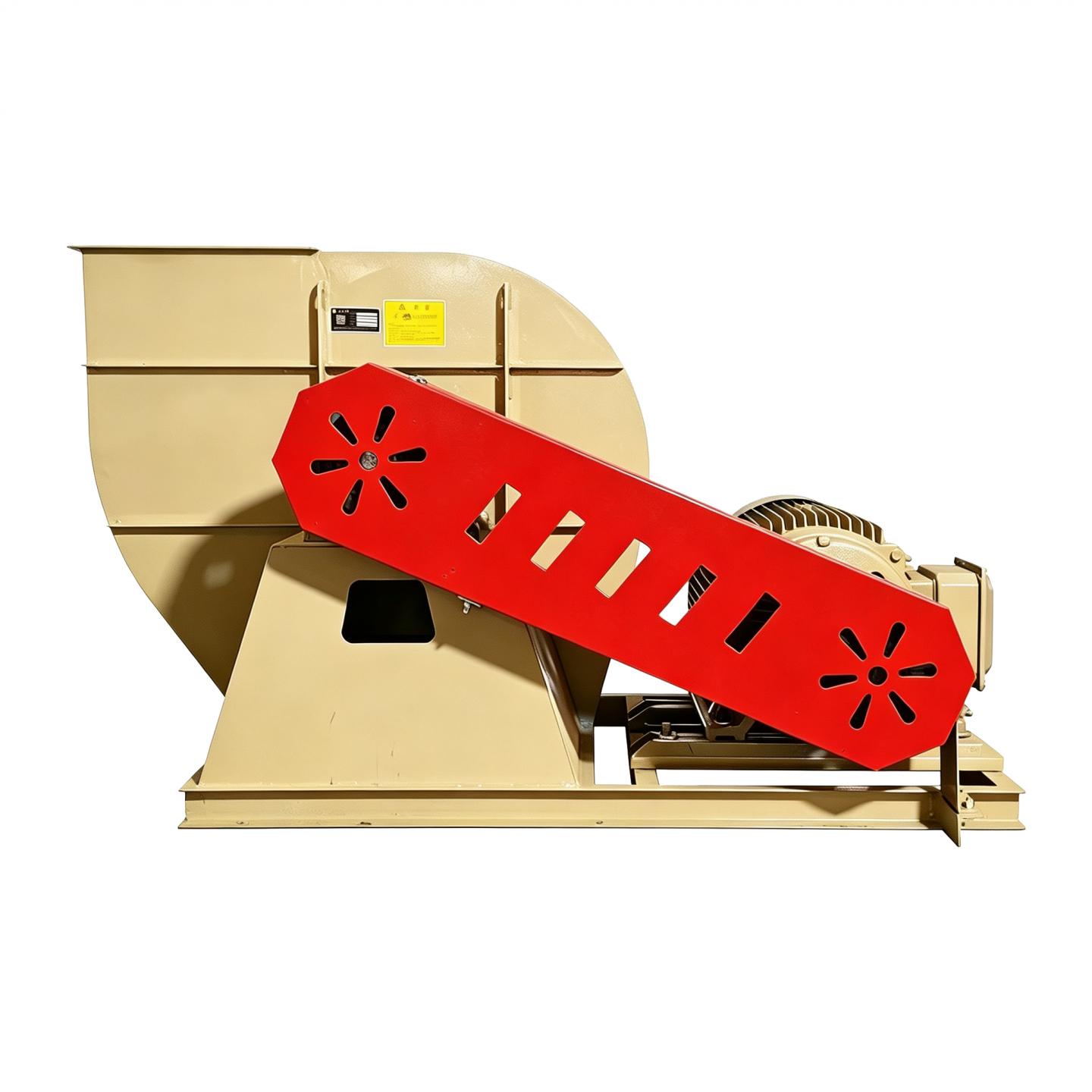

Pellet Equipment Fan

Home Equipment Pellet Equipment Fan

Pellet Equipment Fan

This product is specially designed for pharmaceutical, food, chemical, and feed pellet production lines, covering centrifugal fans, Roots blowers, and explosion-proof fans. Made of 316L stainless steel and compliant with GMP cleanliness standards, it supports oil-free lubrication and low-noise operation. Air volume and pressure can be customized to working conditions, suitable for fluid bed granulation, boiling drying, sizing, sieving, and pneumatic conveying. Optional features include variable frequency control, silencers, and explosion-proof motors. Highly efficient and energy-saving with stable operation, it is an ideal choice for ensuring stable pelletizing processes and workshop cleanliness.

Equipment

Description

Pellet Equipment Fan: A Complete Guide to Selection, Application & Maintenance

1. Why Does Pellet Equipment Need a Dedicated Fan?

In the pharmaceutical, food, chemical, and feed industries, the stable operation of pellet production lines depends on fans. Whether for fluid bed granulation, boiling drying, sizing, sieving, or material conveying, fans handle key tasks such as air supply, induced draft, dust removal, and pneumatic conveying.

Unlike ordinary fans, pellet equipment fans must meet special requirements including dust-free operation, corrosion resistance, low noise, and explosion-proof design, while complying with GMP cleanliness standards. Choosing the right fan directly affects pelletizing efficiency, pellet quality, and production safety.

2. Main Types of Pellet Equipment Fans

Type Main Application Features
Centrifugal fan Fluid bed air supply, dust removal High pressure, suitable for long ducts
Roots blower Pneumatic conveying, boiling drying Stable air volume, adjustable pressure
Axial fan Workshop ventilation, cooling High air volume, lower noise
Explosion-proof fan Flammable/explosive dust Safe and reliable, ATEX compliant

3. Key Selection Points for Pellet Equipment Fans

  1. Air volume and pressure: Calculated based on fluid bed area, material characteristics, and duct resistance;

  2. Material requirements: 316L stainless steel for pharmaceutical clean areas, carbon steel for general applications;

  3. Explosion-proof rating: Explosion-proof motors and anti-static impellers required for flammable/explosive dust;

  4. Noise control: Pharmaceutical workshops typically require below 75dB, silencers needed;

  5. Sealing and cleanliness: Oil-free lubrication and easy-clean design to avoid material contamination.

4. Daily Maintenance and Common Issues

  • Bearing lubrication: Regularly add high-temperature grease, inspect quarterly;

  • Impeller balance: Dust accumulation causes vibration; clean and dynamically balance regularly;

  • Belts and couplings: Check tension and wear to avoid slipping or breakage;

  • Filters: Clean inlet filter screens regularly to prevent blockage and reduced air volume;

  • Operation records: Monitor current, vibration, and temperature; establish maintenance logs.

Common faults include: insufficient air volume (clogged filters), abnormal vibration (impeller imbalance), excessive noise (bearing wear), and motor overheating (overload).

5. Industry Trends and Summary

As GMP and energy-saving requirements increase, pellet equipment fans are developing toward high efficiency, intelligent variable frequency, low noise, and modular designs. Variable frequency control automatically adjusts air volume based on working conditions, significantly reducing energy consumption.

Fans are the “lungs” of pellet production lines. Proper selection and standardized maintenance ensure stable pelletizing processes and qualified pellets. Companies are advised to choose professional manufacturers based on actual working conditions and establish regular maintenance systems.
