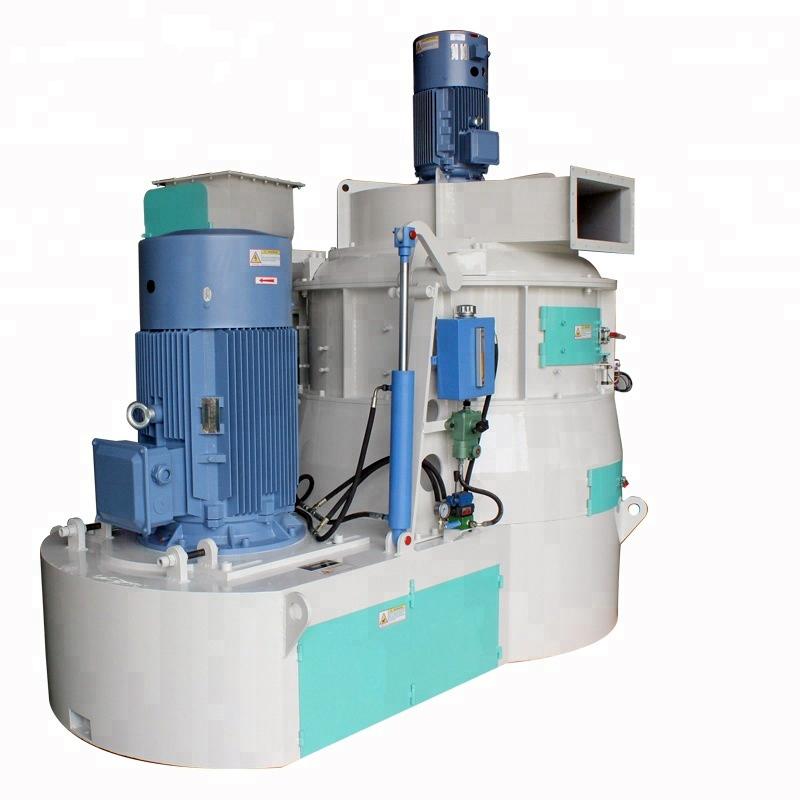

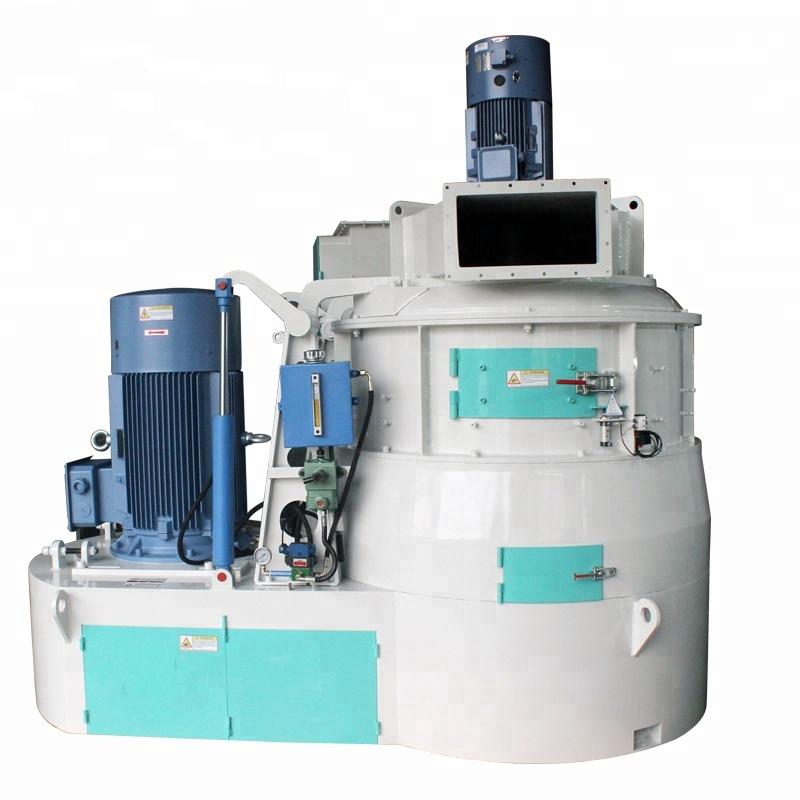

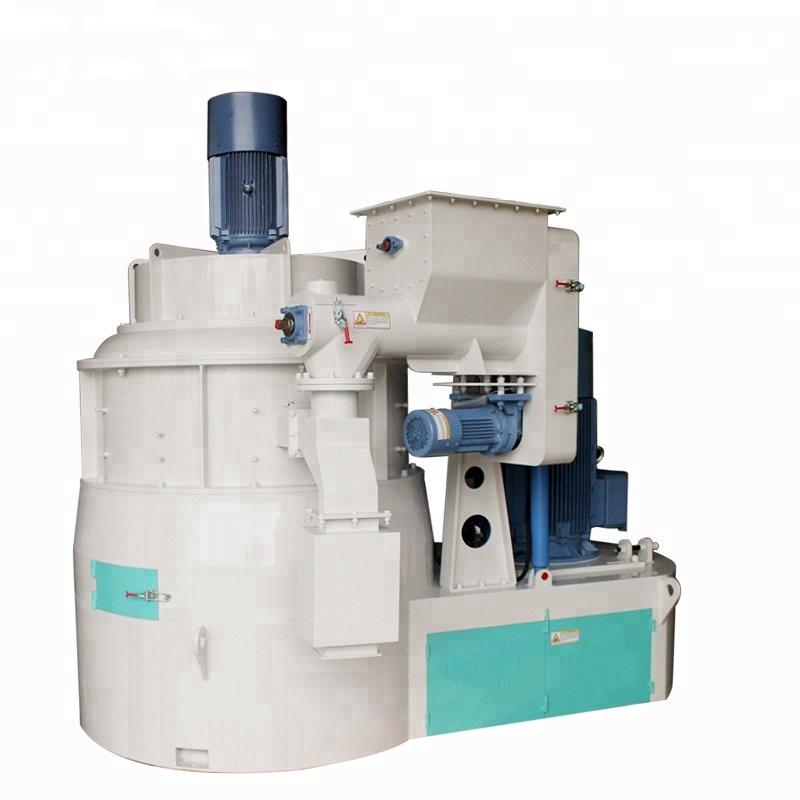

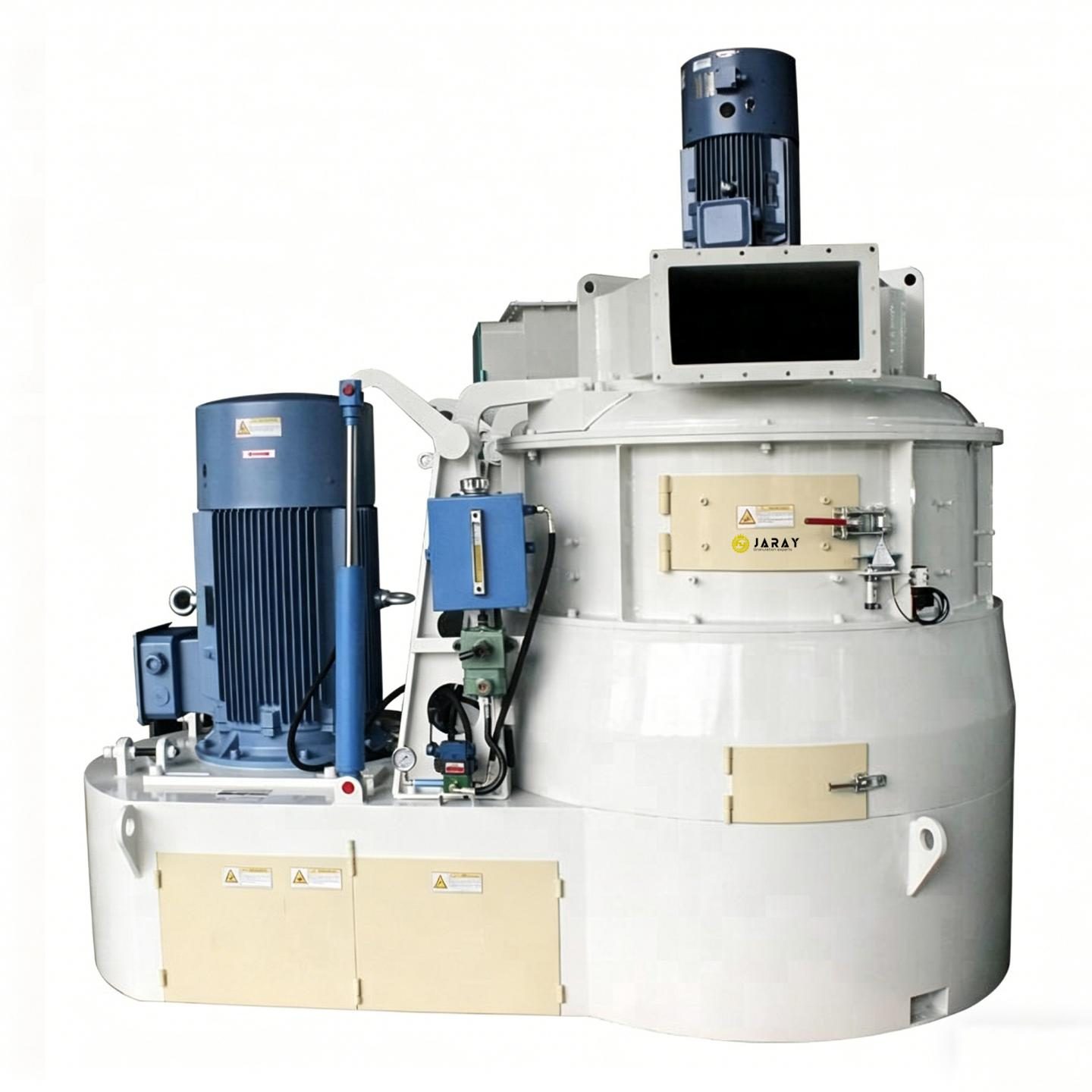

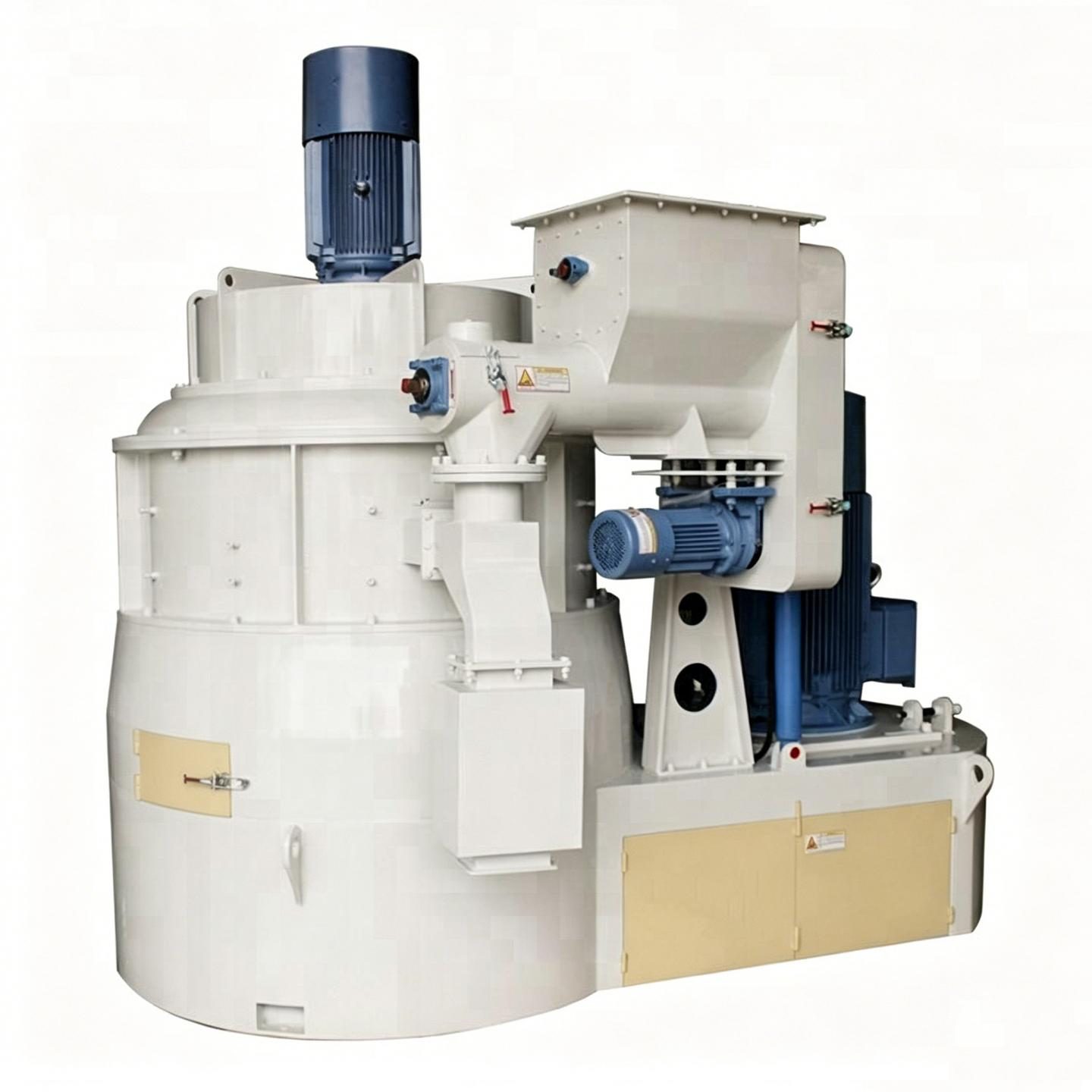

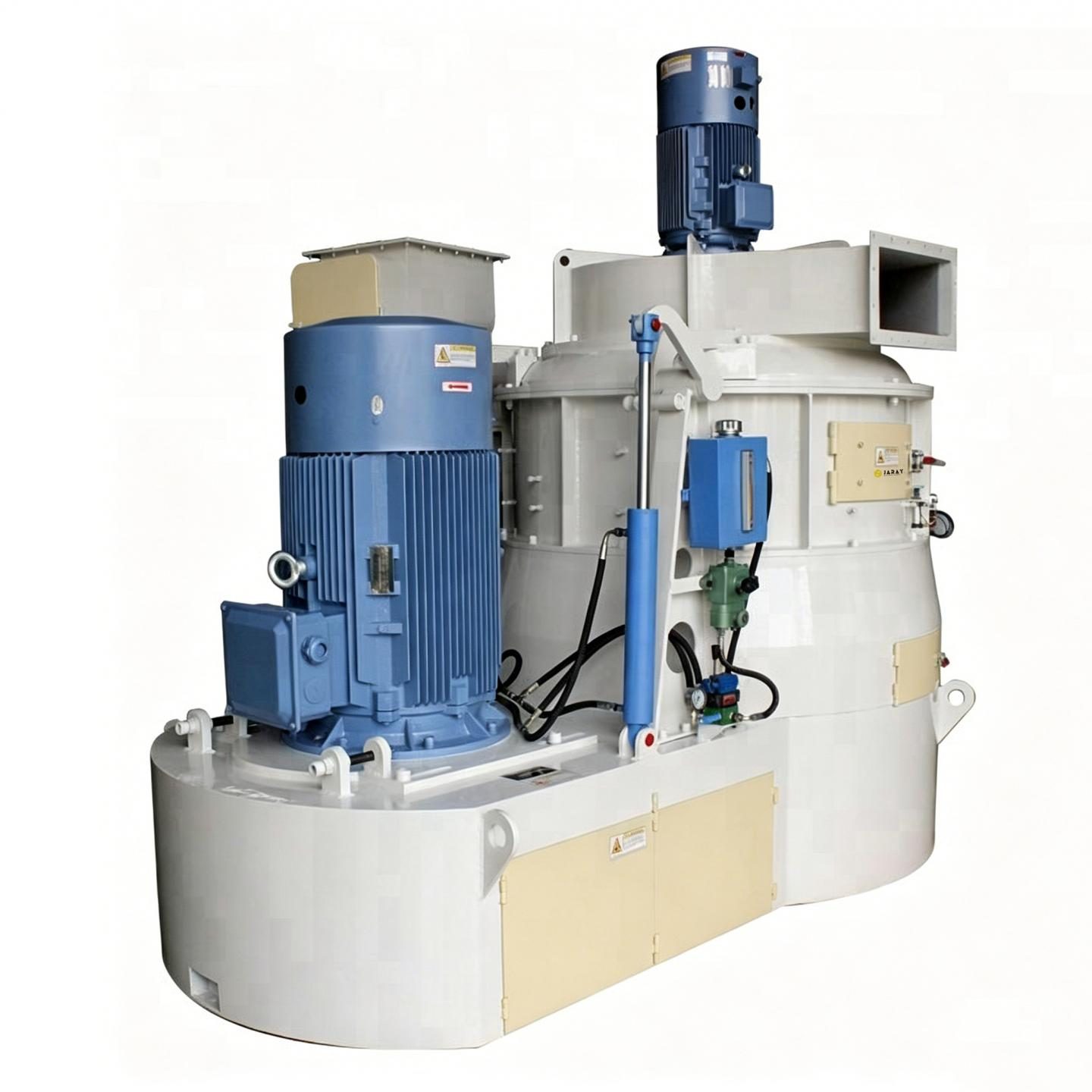

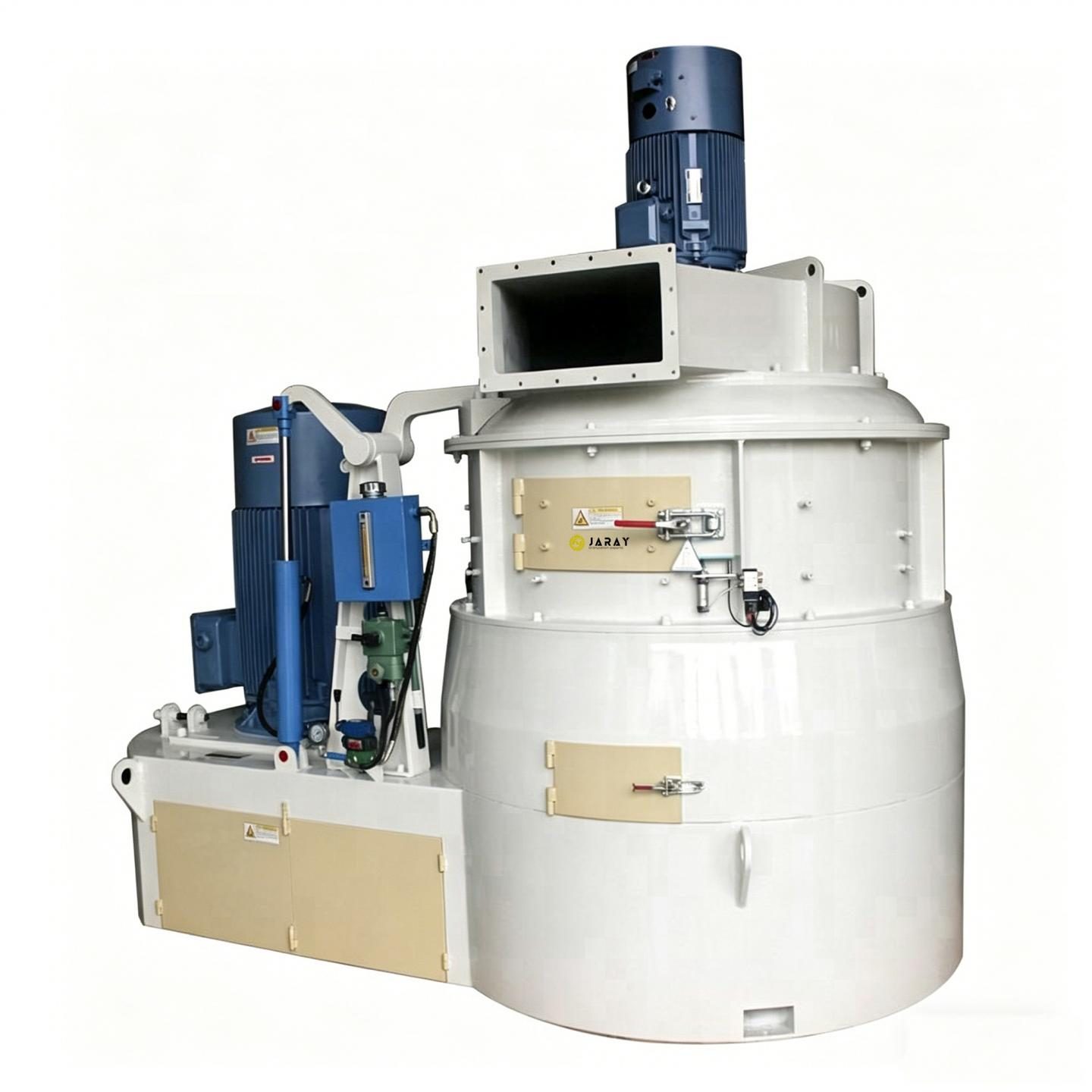

Ultrafine Pulverizer – High-Efficiency, Precision Fine Grinding Solution

The Ultrafine Pulverizer is indispensable equipment in industrial powder processing. Using high-speed impact, shearing, grinding, and air classification technology, it reduces various materials to micron or even submicron powders. Its applications span chemicals, feed additives, food ingredients, pharmaceutical intermediates, dyes, pesticides, mineral processing, biomass, and more. Compared to conventional crushers, the Pulverizer achieves finer particle size distribution, higher grinding efficiency, and lower energy consumption.

1. Working Principle of Ultrafine Pulverizer

The core working principle of a Pulverizer is to apply multiple mechanical forces to the material through a high-speed rotor combined with a fixed toothed ring, screen, or classifier wheel. Material enters the grinding chamber and is impacted, sheared, and abraded by hammers, blades, or discs, instantly breaking into fine particles. The ground material is carried by airflow to an internal or external classifier. Qualified fine powder passes through the classifier wheel and is collected, while coarse particles return to the grinding zone for further size reduction, thus avoiding over-grinding and ensuring uniform particle size.

Common types of Pulverizers include:

• Turbo Pulverizer: Uses turbine blades to generate a high-speed vortex, making particles collide and break. Suitable for medium-hardness, sticky materials.

• Hammer Pulverizer: Multiple moving hammers strike material at high speed, with a screen controlling output size. Simple structure, high output.

• Disc Pulverizer: Uses differential rotation between a rotating disc and a fixed disc with grinding teeth to intensely grind materials. Suitable for tough and fibrous materials.

• Jet Pulverizer: High-speed air drives particles to self-collide. No moving parts in contact with material. Ideal for heat-sensitive, high-purity materials.

2. Core Advantages of Ultrafine Pulverizer

1. Ultrafine particle size
   Wide adjustable range, typically D50 = 5–150 μm, and some models can achieve D97 < 5 μm, meeting high-end powder requirements.

2. Narrow particle size distribution
   Equipped with a precision classification system, effectively controlling distribution range and reducing both oversized particles and excessive fines.

3. Controlled temperature rise
   Large airflow carries away heat during grinding. Cold air or liquid nitrogen can be introduced if needed, suitable for heat‑sensitive materials (resins, spices, vitamins).

4. Wide material adaptability
   The Pulverizer can handle various hardness grades (Mohs 1–7), moisture content (typically <10% dry materials, some can tolerate moderate moisture), different toughness, fibrousness, and brittleness.

5. Compact structure, easy to clean
   Quick‑opening design with no dead corners, easy to thoroughly clean when changing products to prevent cross‑contamination.

6. Automation and safety
   PLC control for feeding, classifier speed, and air volume. Equipped with overload protection, vibration monitoring, and explosion‑proof design (for flammable materials).

3. Typical Applications of Ultrafine Pulverizer

• Feed and additives: Grinding soybean meal, fishmeal, corn, premixes, minerals, zeolite powder to improve animal digestibility.

• Food industry: Ultrafine processing of wheat bran, dietary fiber, soybean powder, sugar, spices, bone meal, coffee beans.

• Chemical materials: Pigments, dyes, carbon black, activated carbon, diatomite, talc, wettable pesticide powders, rubber additives.

• Pharmaceuticals: Ultrafine grinding of herbal medicines, extracts, excipients, antibiotic intermediates to improve bioavailability.

• Minerals & building materials: Limestone, barite, kaolin, graphite, mica, fly ash (non‑metallic minerals).

• Biomass energy: Pretreatment of straw, wood chips, rice husks, algae to increase specific surface area.

4. How to Choose the Right Ultrafine Pulverizer?

1. Identify material properties

   • Hardness: materials with Mohs >5 consider impact or jet mill.

   • Moisture: wet/sticky materials may require heating/drying pretreatment or self‑cleaning design.

   • Fat/oil content: high‑oil materials (e.g., peanuts, sesame) need cryogenic grinding or addition of anti‑caking agents.

2. Target fineness and capacity

   • Target D90 < 10 μm: prefer jet mill or precision‑classified impact mill.

   • Medium‑fine grinding with capacity >500 kg/h: hammer or turbo Pulverizer is more economical.

3. Hygiene and cleanliness requirements

   • Food/pharmaceutical grade: 316L stainless steel, mirror polish, good seals, no dead corners.

   • General industrial: carbon steel or wear‑resistant steel is acceptable.

4. Auxiliary systems

   • Dust collector (pulse jet cartridge or bag filter) for environmental compliance.

   • Sound enclosure to reduce noise.

   • Automatic feeding and pneumatic conveying to improve overall line efficiency.

5. Maintenance and Care

1. Wear parts management: Regularly check hammers, toothed rings, classifier impellers, screens; replace when worn.

2. Bearing lubrication: Use high‑temperature grease as per manual; replace or replenish every 500–1000 hours.

3. Clean grinding chamber: Remove residual material after each shift, especially sticky materials, to prevent blockages and buildup.

4. Air system: For jet mills, ensure compressed air is dry, oil‑free, and filtration meets specifications.

5. Electrical and safety: Regularly inspect motor, VFD, sensors, explosion vents, etc.

6. Common Issues and Troubleshooting

Conclusion

The Ultrafine Pulverizer is the main driver for fine and efficient powder processing. Proper selection, operation, and maintenance significantly improve product quality and reduce production costs. Whether for feed additives, food ingredients, chemical products, or Chinese herbal medicine processing, the Pulverizer provides a stable and reliable ultrafine powder solution. We offer a complete range of Pulverizers from laboratory to industrial production lines. Contact us for consultation or toll‑testing.
