Description

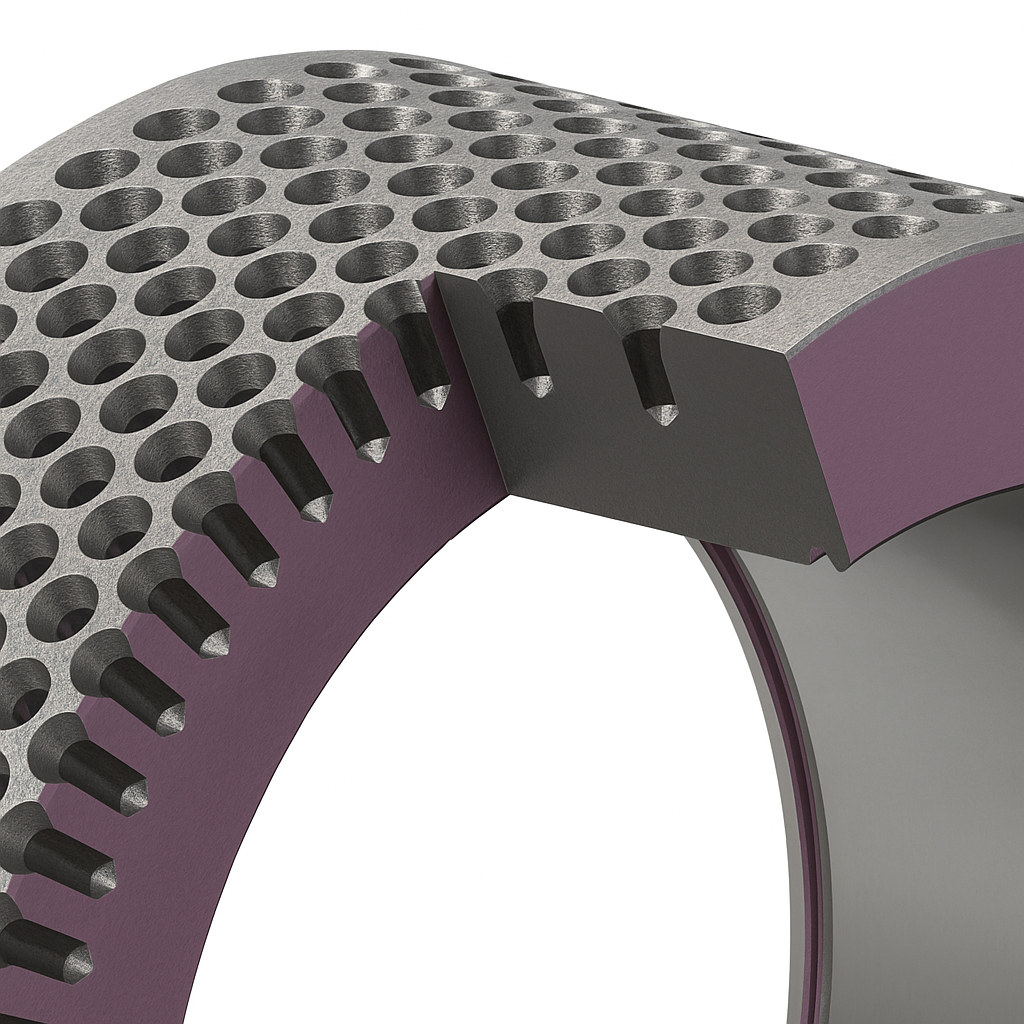

The chamfered hole roller shell is an optimized hole design for pellet mill rollers, featuring circular straight holes with chamfered edges (typically C0.5-C2.0 or radius-rounded) on the working face. Compared to standard straight hole rollers, the chamfered structure eliminates the sharp edges at hole openings, creating smoothly transitioning material guide slopes. This design guides material more smoothly into the hole areas during compression while reducing fiber cutting at hole edges, making it particularly suitable for shear-sensitive materials requiring fiber length protection, as well as sticky materials prone to accumulating at hole openings.

Q: What is the essential difference in failure mode between a chamfered hole roller shell and a standard straight hole roller shell? What is the theoretical basis for its life advantage?
A: The primary failure mode of standard straight hole rollers is plastic edge curling or micro-crack initiation at the sharp edges of holes under cyclic compression, which then propagates into land spalling. In contrast, the chamfered hole roller replaces sharp edges with slopes or rounded transitions, reducing peak contact stress by approximately 35%-50% (based on finite element analysis) while eliminating the stress singularity at 90° corners. The theoretical basis for its life advantage lies in Hertzian contact theory – the chamfer transforms line or point contact stress into distributed surface contact, significantly delaying the onset of fatigue spalling. In actual operating conditions, chamfered hole roller shells typically achieve 1.4-1.8 times the service life of standard straight hole rollers.

Q: How should chamfer dimensions be matched to different materials? What problems arise from too small or too large a chamfer?
A: Chamfer dimensions should be determined based on material particle size and hardness. For fine powders (≤0.5mm), a C0.3-C0.6 micro-chamfer is recommended, just enough to eliminate sharp edges. For coarse fibrous materials (e.g., wood chips), C1.0-C1.5 is recommended, using the slope to guide fiber bundles into holes rather than cutting them. Too small a chamfer (<C0.2) cannot effectively reduce stress and still leads to edge curling. Too large a chamfer (>C2.5) reduces effective land area, causing insufficient compression and loose pellets, and may cause material to sink excessively into holes, leading to demolding difficulties.
