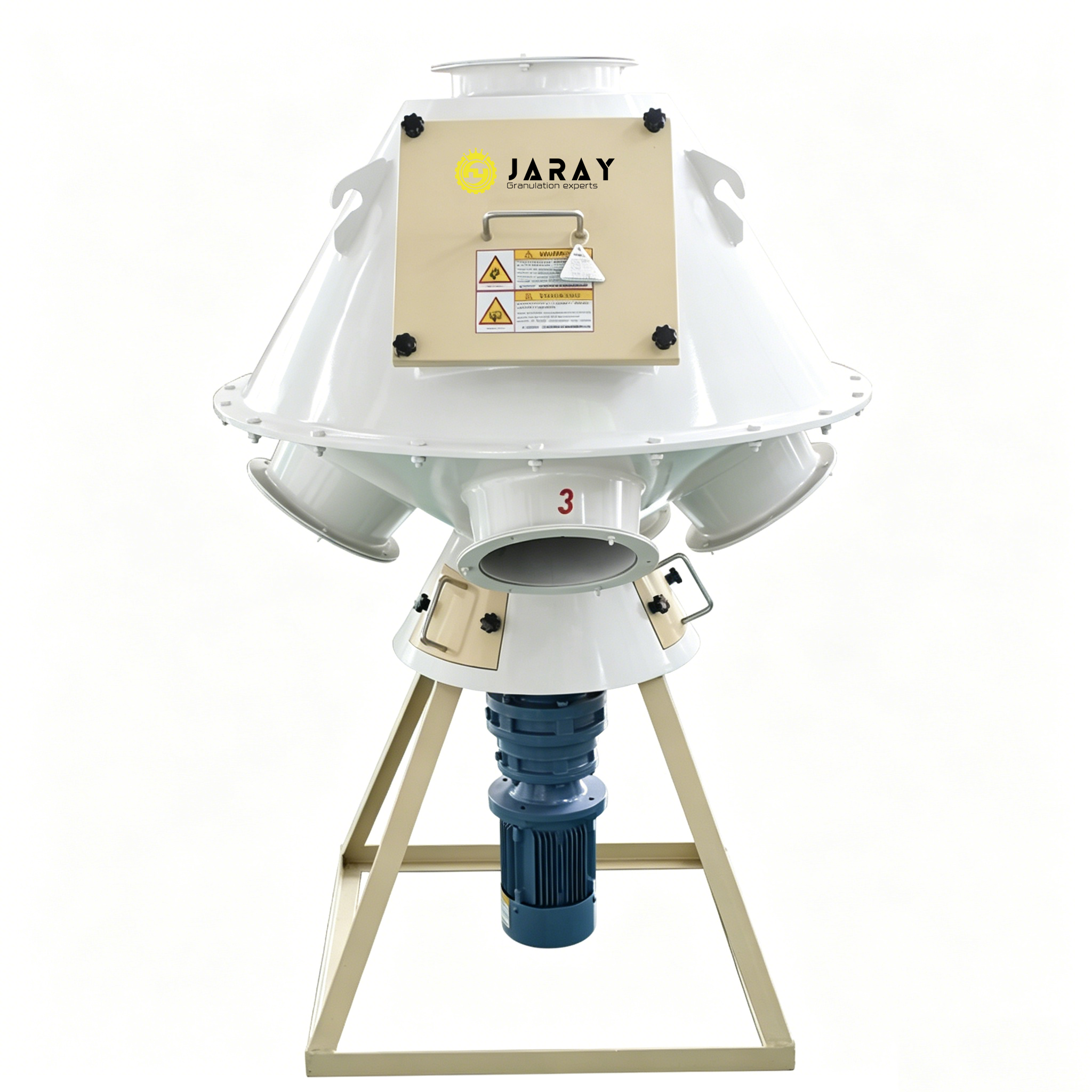

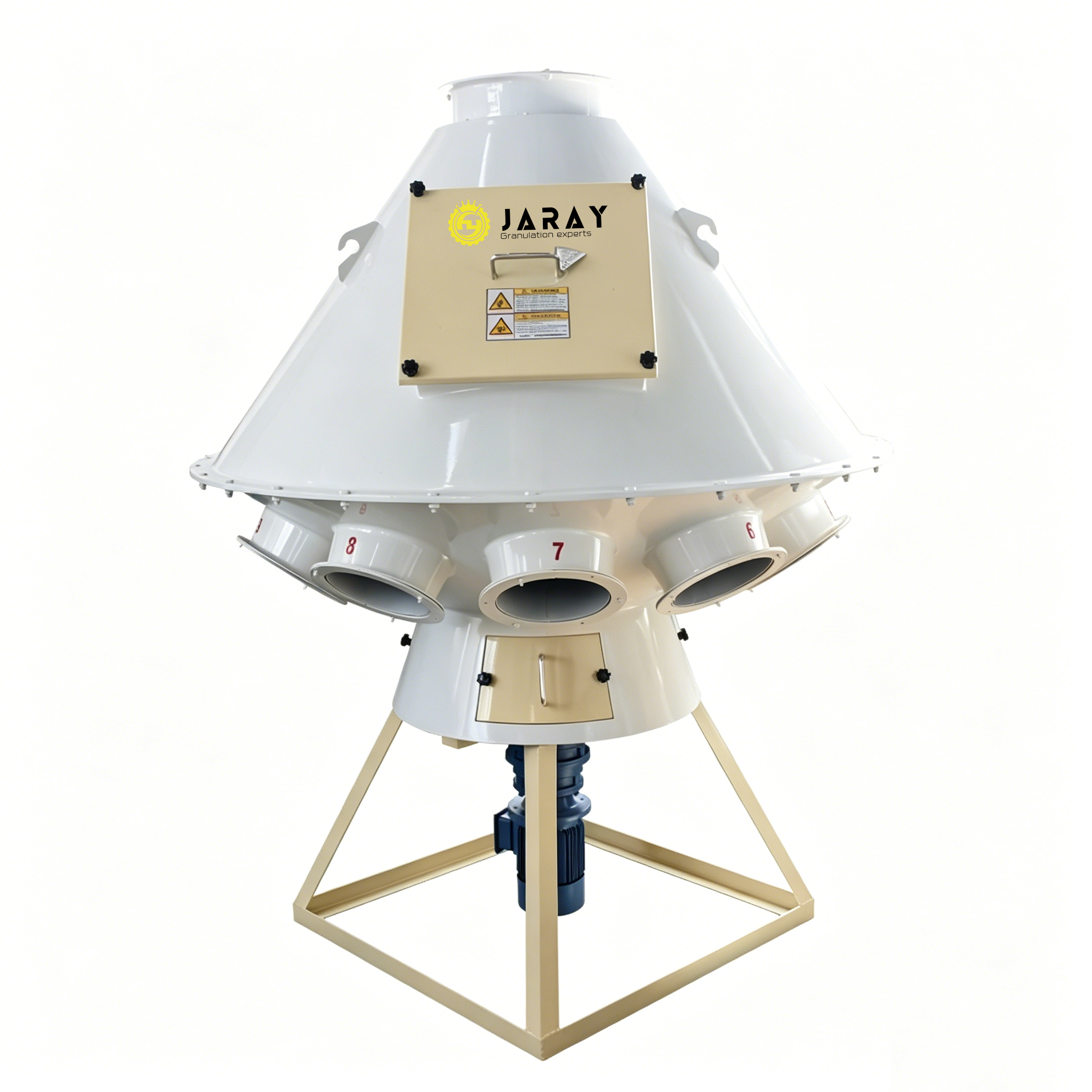

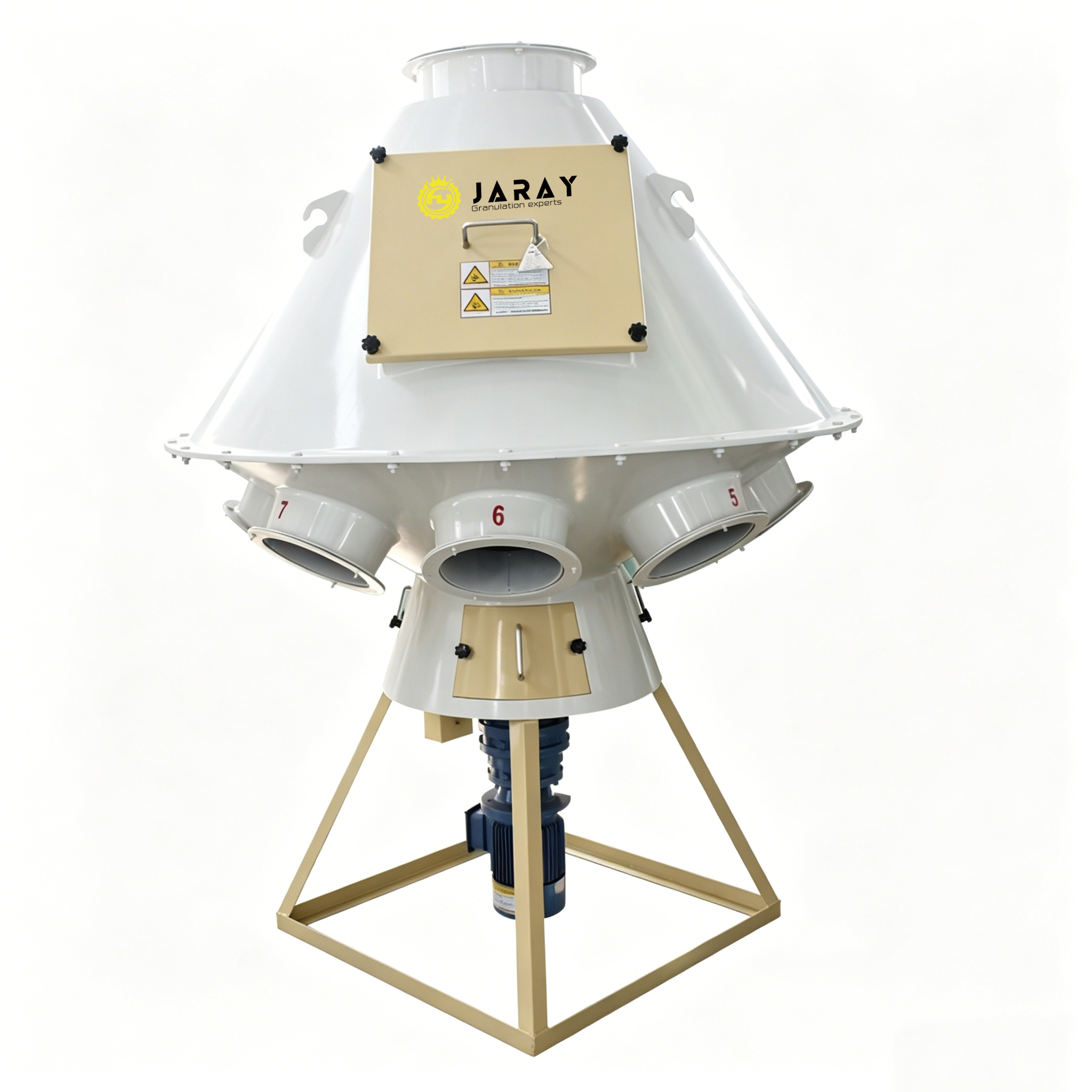

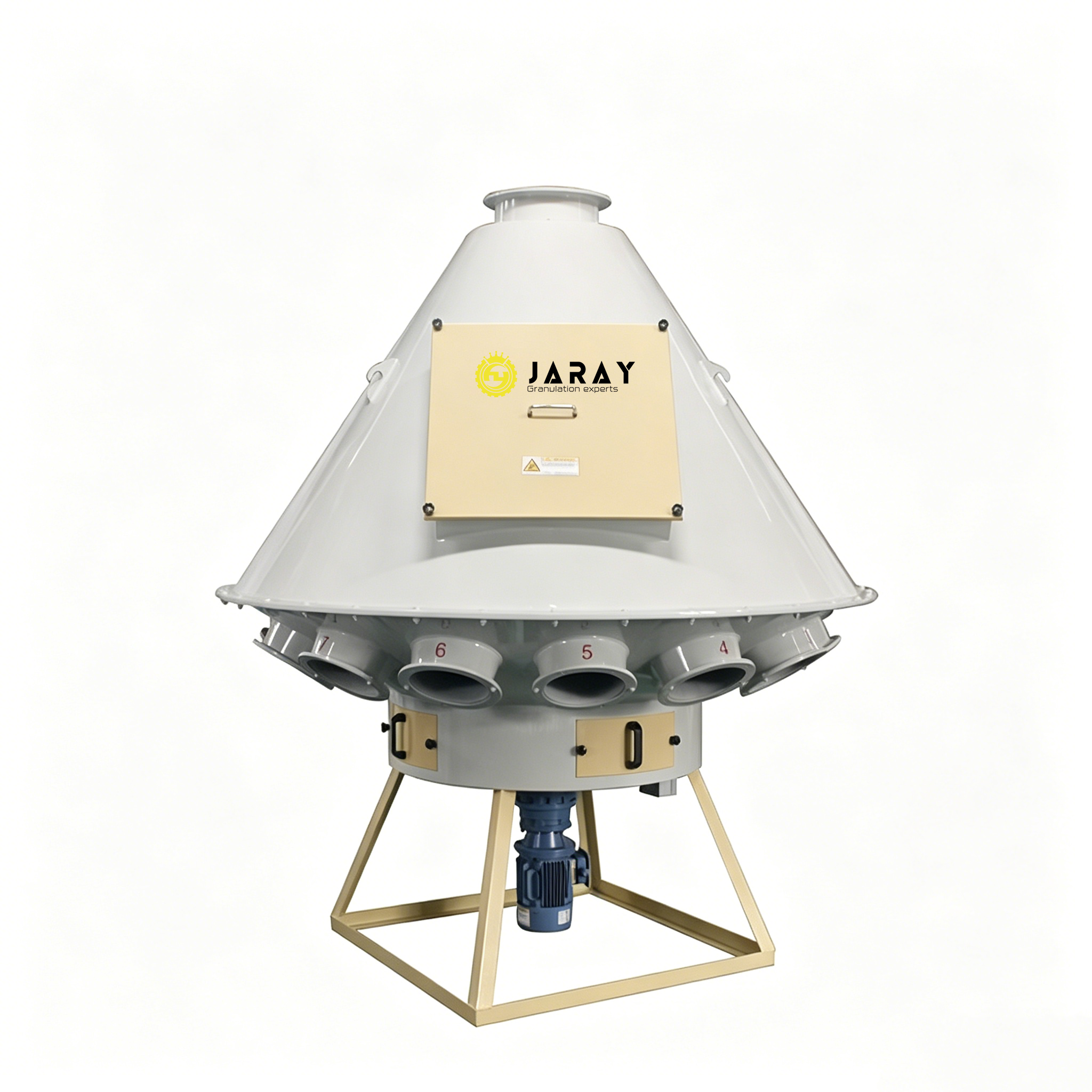

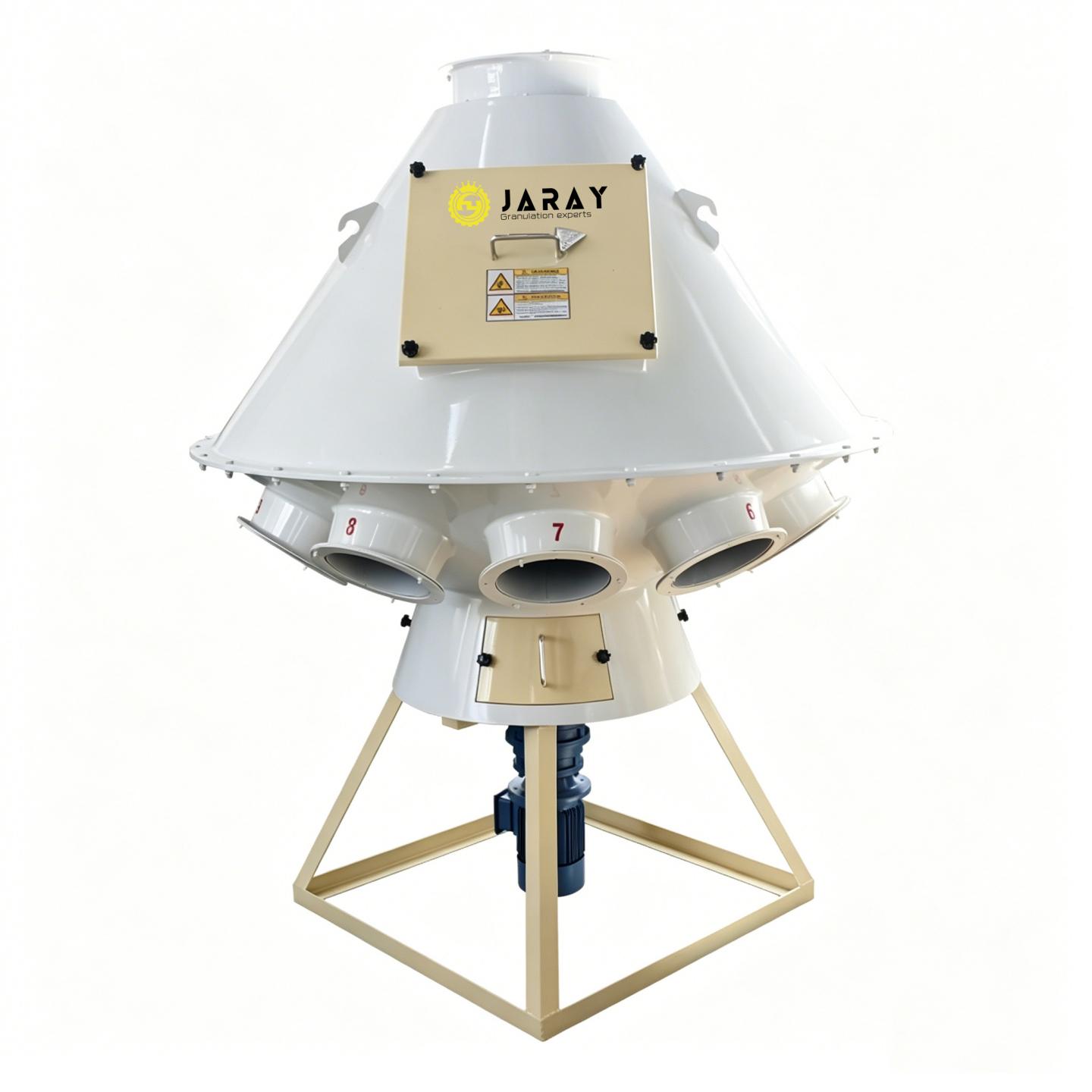

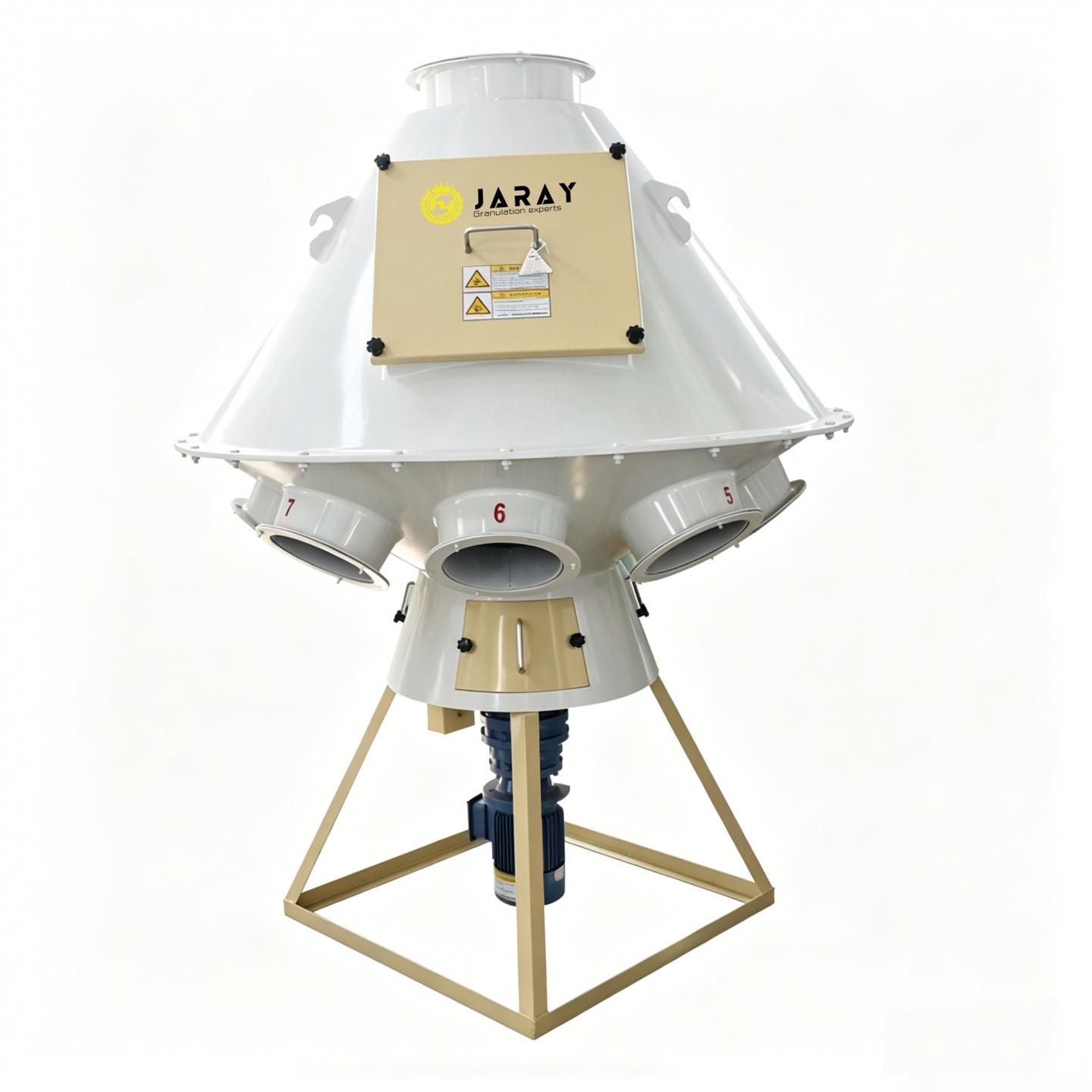

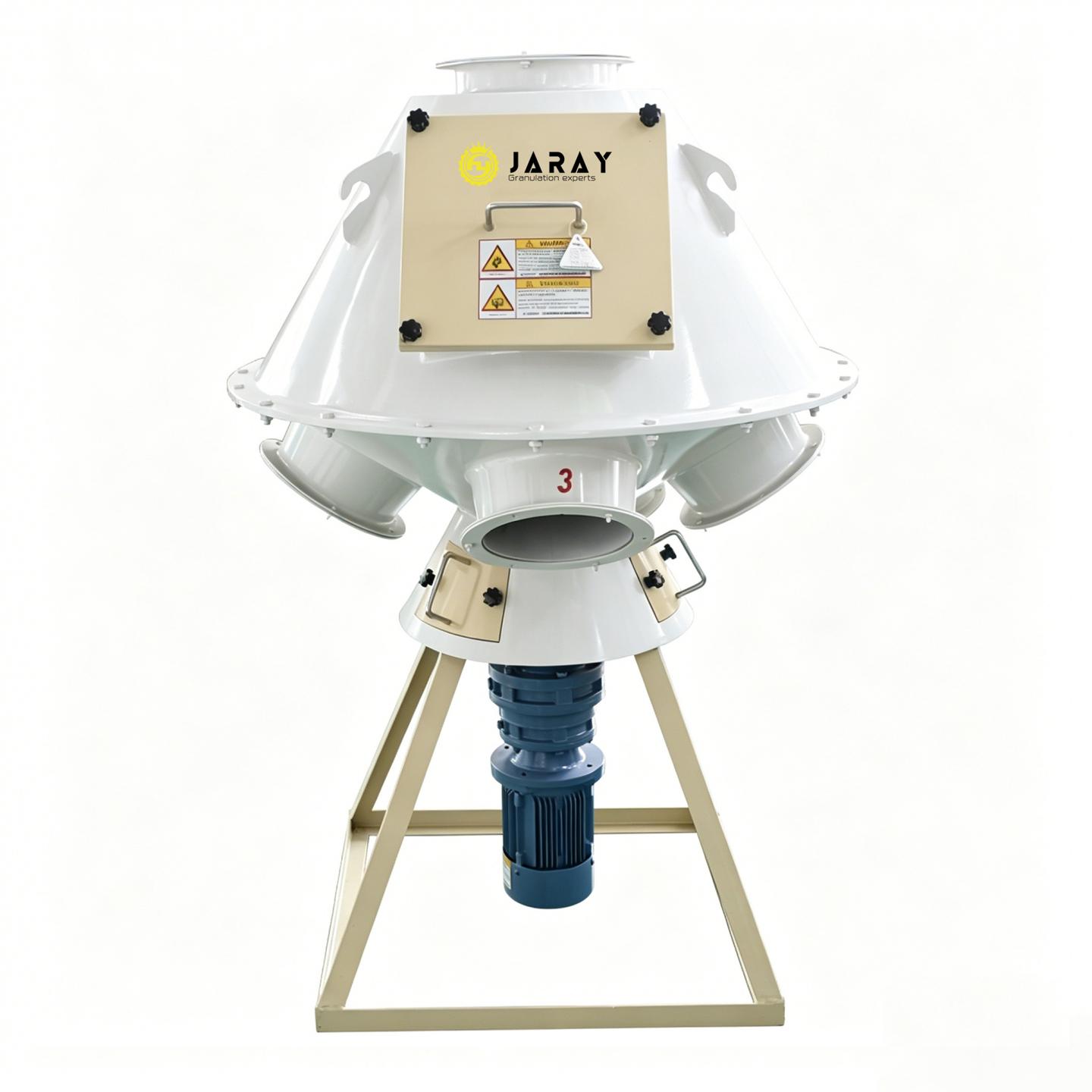

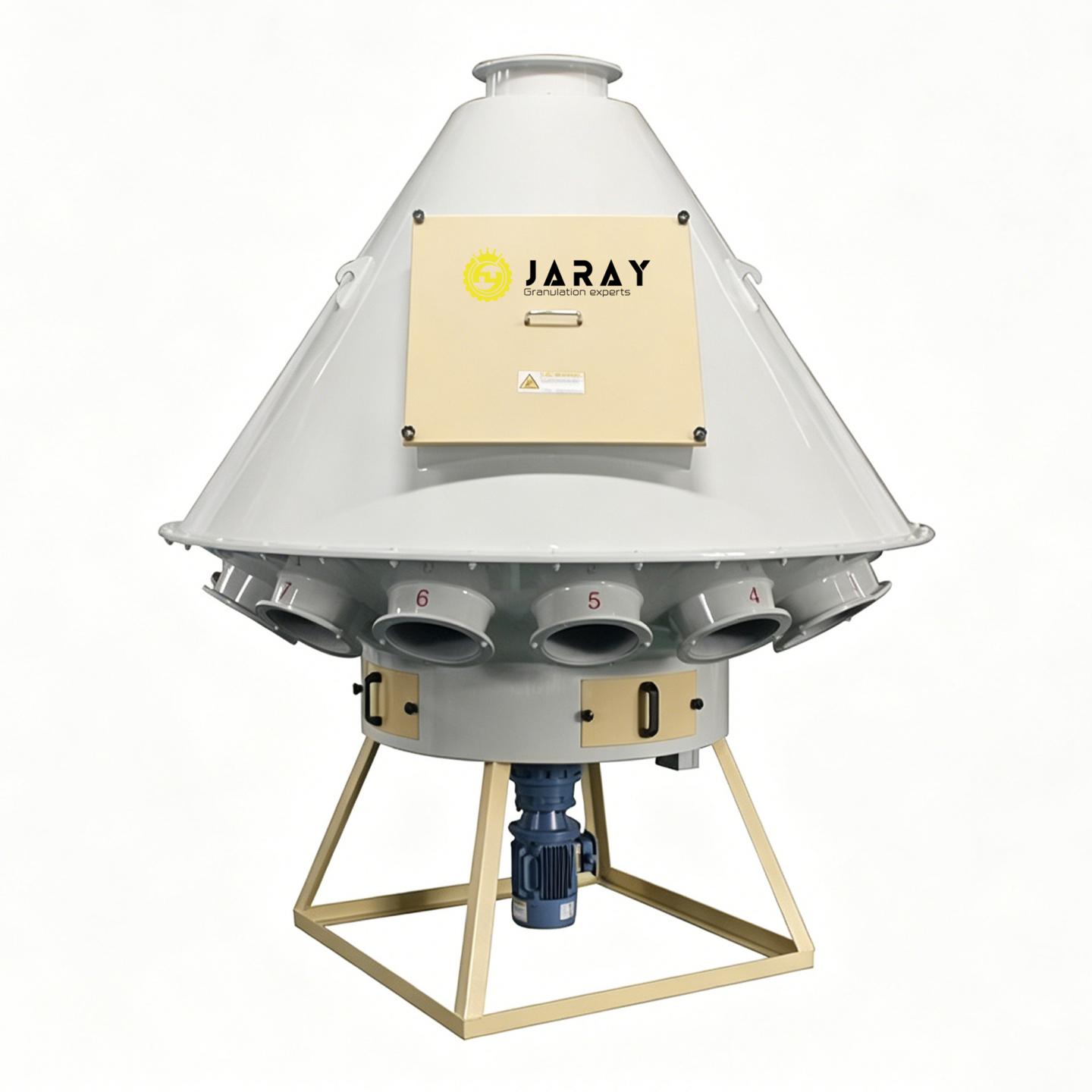

The TFPX series rotary distributor is a core auxiliary equipment for automated material distribution in the feed processing and grain storage industries. As a device capable of automatic positioning and material flow via gravity conveying, it realizes remote-controlled distribution from “one point to multiple points” and is widely used for raw material feeding and intermediate product distribution into bins.
The TFPX series rotary distributor is a core auxiliary equipment for automated material distribution in the feed processing and grain storage industries. As a device capable of automatic positioning and material flow via gravity conveying, it realizes remote-controlled distribution from “one point to multiple points” and is widely used for raw material feeding and intermediate product distribution into bins.
The TFPX series rotary distributor is essentially an electrically controlled diverter. Typically installed at the discharge of bucket elevators or on top of bins, it receives material from upstream processes and precisely feeds it into designated target bins through an internal rotating mechanism.
The number in the TFPX model designation indicates the number of discharge chutes, covering a range from TFPX4 to TFPX20, allowing users to select based on the actual number of bins to enable multi-species, multi-formula material storage.
The TFPX rotary distributor has a clear and reliable working principle, mainly consisting of a geared motor, drive shaft, guide chute, housing, guide rail, and limit switches.
When in operation, operators issue commands from the control room. The geared motor drives the shaft, which rotates a movable guide chute along an annular rail inside the housing. The chute is equipped with spring-loaded cleaning brushes and sealing rings to ensure tight contact with the distributor plate. Once the chute reaches the preset position, the limit switch is triggered and immediately cuts off motor power, achieving precise positioning. At the same time, the electromagnetic brake of the motor and the mechanical self-lock of the gearbox provide dual protection, ensuring a secure connection between the chute and the lower housing and forming a stable discharge channel.
Material from the upstream elevator then flows smoothly under gravity through the chute interface into the designated bin, completing the entire automated bin-switching process.
1. Compact structure, precise positioning:
The machine features a compact structure with a small footprint. The electromagnetic brake combined with mechanical self-lock of the gearbox ensures dual protection, locking the chute firmly in position — even under material impact, it will not shift easily.
2. Prevents material cross-contamination:
Precise anti-leakage devices are provided at the material joints. Once the chute is positioned, a tight seal is formed between the discharge opening and the plate, physically preventing material from leaking into adjacent bins.
3. Self-cleaning function, minimal residue:
Both the chute and dust pipe are equipped with cleaning brushes that automatically scrape accumulated dust from inner walls, preventing mold or clogging caused by long-term material residue, and ensuring hygiene and safety over extended use.
4. Extremely low power consumption:
The TFPX series consumes very low power — common models from TFPX4 to TFPX12 require only 0.55 kW, and even large models do not exceed 1.1 kW, making energy costs almost negligible.
5. Excellent sealing, suitable for dusty environments:
Key components, electrical parts, and drive mechanisms are equipped with sealing devices to prevent dust intrusion. The machine is available in dust-removing and non-dust-removing versions, effectively controlling dust emission.
6. Easy installation and maintenance, reliable operation:
Integrated housing with accessible inspection doors. After level installation and duct connection, trial operation can begin immediately. Main components are durable with extremely low failure rates.
Feed mills: Widely used for feeding raw materials into bins and for intermediate product distribution — an essential equipment for feed production lines.
Grain storage: Used in silo towers, feeding grain from elevators into different bins by quality classification.
Oil and starch processing: Suitable for powder and granular material distribution in oil mills, starch plants, etc..
Consider the following when selecting a TFPX series rotary distributor:
Number of outlets: Determine the number of bins needed and select the corresponding model (TFPX4 to TFPX20).
Material characteristics: Suitable for both powder and granular materials. Powder capacity approx. 30—40 t/h, granular capacity 40—60 t/h (φ250 pipe), fully compatible with mainstream feed production lines.
Dust collection needs: For dusty environments, choose models with dust removal function.
Pipe connections: Inlet/outlet diameters of φ200, φ250, φ300 available; ensure compatibility with elevator and chute dimensions.
After-sales service: Choose suppliers with industry standard (JB/T 12783-2016) certification to ensure equipment quality.
Inspect the condition of chute seals and cleaning brushes after each shift; replace if damaged.
Check gearbox oil level every 300 hours and change lubricating oil according to the manual.
Periodically check limit switch and actuator rod positions to ensure accurate stopping and correct signal transmission.
Keep the machine clean inside and out to prevent dust accumulation that may affect heat dissipation and electrical component sensitivity.
If the chute rotates unevenly, open the top cover and adjust the chute rotation center to align with the main shaft.
The TFPX series rotary distributor, with its significant advantages of precise positioning, anti-cross-contamination, self-cleaning, low energy consumption, and easy maintenance, has become the preferred choice for material distribution in the feed and grain industries. Proper selection, correct operation, and regular maintenance will effectively improve material transport efficiency, prevent product cross-contamination, and reduce operating costs. We offer the complete TFPX series from TFPX4 to TFPX20 as well as complete conveying and distribution solutions. Please contact us for inquiries.
